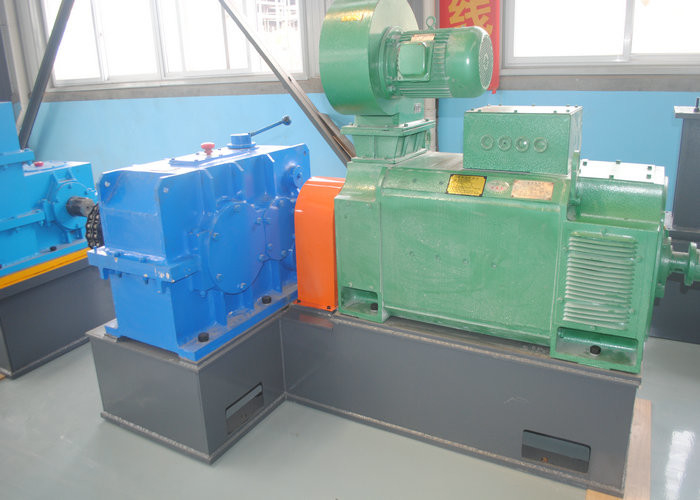

High Frequency ERW Carbon Steel Pipe Mill 50-100K Tons/Year

Name: High Frequency ERW Carbon Steel Pipe Mill 50-100K Tons/Year
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency ERW Carbon Steel Pipe Mill , 50000 - 100000 Metric Tons / Year

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

ERW Carbon Steel Pipe Mill

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Frequency ERW Carbon Steel Pipe Mill

Designed for precise fabrication of cold or hot-rolled coil, galvanized coil, and more. This ERW Pipe Mill provides tight production tolerances for round, square, and rectangular pipes used in metallurgy, construction, transportation, machinery, and automobile industries.

Key Specifications

Attribute	Value
Certification	CE ISO
Worm Gearing	Max. 80m/min
Pipe Thickness	4.0-10.0mm
Max. Thickness for Square Pipe	0.8-3.0mm
Product Speed	Max 50m/min
Material	Carbon steel, stainless steel, low alloy steel

Technical Overview

Type: Pipe Mill, ERW32
Application: Drain Pipe, construction and machinery
Production Capacity: 50,000-100,000 metric tons/year
Speed Range: 0-90m/min
Place of Origin: Hebei, China
Brand: WANXIN
Models: HG32/HG50/HG76/HG127
Voltage: 220/380/415/420/440V
Power: 400KW-6000KW
Dimensions: 200m × 18m
Weight: 40T
Warranty: 1 Year

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Raw Material Specifications

Material Application	Hot or cold rolled steel strips, galvanized steel strips
Material Grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips	Φ508-Φ610mm
OD of Steel Strips	Φ800-Φ2000mm
Coiler Weight	Max. 4000kg

Production Range

Pipe Type	Size Range	Thickness
Round Pipe	32-140mm	1.0-5.0mm
Square Pipe	25×25-110×110mm	1.0-4.0mm
Rectangular Pipe	20×30-90×120mm	1.0-4.0mm

Additional Specifications

H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 6-12m
Cutting Accuracy: ±3mm
Electric installed capacity: approx. 500KW
Size of whole line: about 80×9m

Our Services

Engineer support for installation and worker training
1-year quality guarantee with life guarantee repair
Pre-sell services: workshop and production output design
After-sell services: installation, training, and technical support
Option for long-term engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping

Frequently Asked Questions

What are the types of stainless steel pipe welder equipment?

Stainless steel pipe welder equipment is classified by use: Industrial stainless steel pipe making machine and Decorative stainless steel pipe making machine.

What are the supporting parts of stainless steel equipment?

Decoiler: For handling steel strip
Forming Part: Using scroll welded pipe dies
Welder: For welding process
Grinding Part: For weld grinding
Straightening and Sizing Part: Fine-tuning pipe diameter
Cutting Part: Metal hydraulic cutting or grinding wheel cutting
Length fixed: Automatic defining material

Why does steel pipe leakage welding occur?

Welding torch position is too high
Welding torch around is not aligned
Current is too high to melt
Welding current is too small
No argon welding fire do not focus
Mould and steel with water or oil
