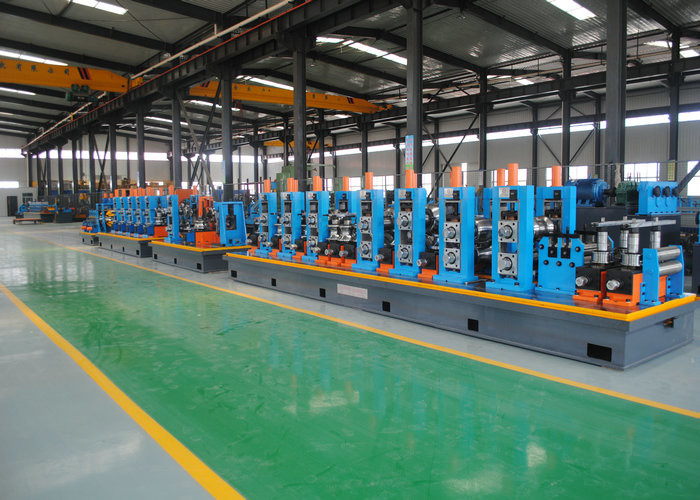

Carbon Steel ERW Pipe Mill with PLC Control 10-660mm Diameter

Name: Carbon Steel ERW Pipe Mill with PLC Control 10-660mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Carbon Steel Tube Mill Machine / ERW Pipe Mill With PLC Automatic Control System

Cutting Saw:

Friction Saw Cutting

Welding Type:

High Frequency Welding

Pipe Thickness:

4.0-10.0mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

Carbon Steel Tube Mill Machine

Highlight:

High Light

Highlight:

erw tube mill

stainless tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

Carbon Steel Tube Mill Machine / ERW Pipe Mill With PLC Automatic Control System

Product Specifications

Attribute	Value
Cutting Saw	Friction Saw Cutting
Welding Type	High Frequency Welding
Pipe Thickness	4.0-10.0mm
Max.Thickness for Square Pipe	0.8-3.0mm
Production Speed	Max 50m/min
Material	Carbon Steel, Stainless Steel, Low Alloy Steel

Product Overview

This high-quality ERW pipe mill is designed for producing round pipes (OD10-OD660mm, WT1.0-WT22mm), square pipes (8*8mm-520*520mm), and rectangular pipes. The rolling speed adjusts according to pipe diameter and wall thickness requirements.

Key Features

Type: ERW32 Pipe Mill
Application: Drain Pipe, Construction and Machinery
Production Capacity: 50,000-100,000 metric tons/year
Speed Range: 0-90m/min
Control System: PLC Automatic Control
Certification: ISO9001:2008
Warranty: 1 Year
After-sales Service: Overseas engineer support available

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

Raw Material:

Material Application	Hot or cold rolled steel strips, galvanized steel strips
Material Grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips	Φ508-Φ610mm
OD of Steel Strips	Φ800-Φ2000mm
Coiler Weight	Max. 4000kg

Production Range:

Round Pipe	32-140mm (Thickness: 1.0-5.0mm)
Square Pipe	2525-110110mm (Thickness: 1.0-4.0mm)
Rectangular Pipe	2030-90120mm (Thickness: 1.0-4.0mm)

H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 6-12m
Cutting Accuracy: ±3mm
Electric Installed Capacity: approx. 500KW
Size of Whole Line: about 80X9m

Our Services

On-site installation and operator training by our engineers
1-year quality guarantee with life-time repair support
Pre-sales services including workshop and production output design
After-sales support including installation, training, and technical assistance
Option for long-term engineer support to optimize production
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping arrangements

Frequently Asked Questions

What are the types of stainless steel pipe welder equipment?

Stainless steel pipe welder equipment is classified by use: Industrial stainless steel pipe making machine and Decorative stainless steel pipe making machine.

What are the supporting parts of stainless steel equipment?

Decoiler: For handling steel strip coils
Forming Part: Uses scroll welded pipe dies
Welder: For pipe welding
Grinding Part: For weld grinding
Straightening and Sizing Part: For fine-tuning pipe diameter
Cutting Part: Metal hydraulic or grinding wheel cutting
Length fixed: Automatic material defining

Why does steel pipe leakage welding occur?

Possible causes include:

Welding torch position too high
Welding torch misalignment
Current too high or too low
Lack of argon in welding
Contamination in mould or steel (water/oil)
