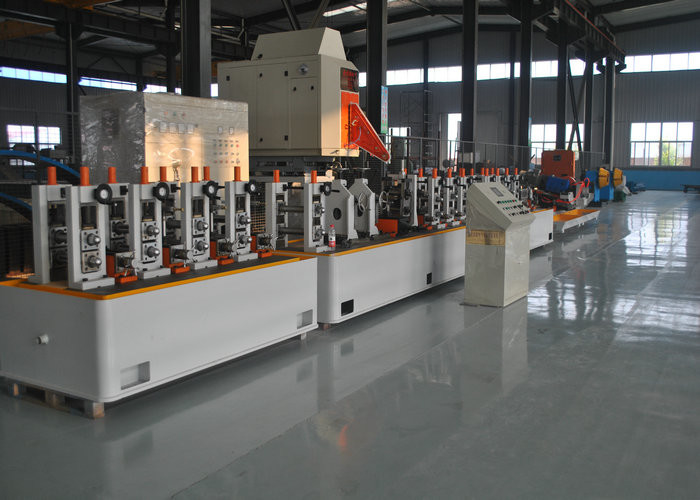

Precision ERW Tube Mill for 25-76mm MS Pipes High Speed Automation

Name: Precision ERW Tube Mill for 25-76mm MS Pipes High Speed Automation
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill Fully Automatical Precision Erw Tube Mill , High Speed MS Pipe Making Machinery

Adjustment Type:

By Turbine Worm

Pipe Shape:

Round,square,rectangular

Pipe Diameter:

25-76mm

Material:

HRC,CRC,Galvanised Steel

Mill Speed:

30-100m/min

Welding Type:

High Frequency Welding

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Supply Ability:

45 Sets/Year

Product Description

Precision Tube Mill - Fully Automatic ERW Tube Mill

Product Specifications

Attribute	Value
Product Name	Precision Tube Mill Fully Automatic Precision ERW Tube Mill, High Speed MS Pipe Making Machinery
Adjustment Type	By turbine worm
Pipe Shape	Round, square, rectangular
Pipe Diameter	25-76mm
Material	HRC, CRC, Galvanised Steel
Mill Speed	30-100m/min
Welding Type	High Frequency Welding

Product Overview

The high-speed MS pipe making machinery is a fully automated, high precision ERW tube mill designed for manufacturing round pipes of Φ12mm-Φ38mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip.

Key Advantages

Precision engineering with level roller jumps ≤0.01mm
Frame and slide clearance ≤0.02mm
Frame vertical degree ≤0.05mm
Each frame parallel degree ≤0.1mm
Steel pipe diameter and roundness error ≤0.08mm

Production Capabilities

The KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. Capable of producing profiled pipes including square, rectangular, and oval pipes.

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

Technical Parameters

Parameter	Value
Stands of Forming Mill	7
Stands of Sizing Mill	5
Shaft Material	40Cr
Round Pipe Diameter	19-76mm
Round Pipe Thickness	1.5-3.0mm
Square Pipe Size	15×15-60×60mm
Square Pipe Thickness	1.5-2.0mm

Key Features

Continuous production without need to change rollers in rough-forming section
Reliable welding seam technology
Covers most stainless steel pipes used in building construction
Low production cost with high production capacity
Shaft material: 45# steel adjustable treatment
Power: 101kw
Forming speed: 20m/min

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Our Services

Engineer dispatch for installation and worker training
One year quality guarantee with life guarantee repair
Pre-sell and after-sell service including workshop design and production output design
Option for engineer support for several months to improve output and reduce waste
Complete project design for stainless steel/carbon steel pipe making
Responsibility for loading and shipping
