Precision Tube Mill for 25-76mm High Frequency Welded Pipes

Name: Precision Tube Mill for 25-76mm High Frequency Welded Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Pipe Shape:

Precision Tube Mill Pipe Diameter 25-76mm High Frequency Welded Precision Tube Mill

Pipe Diameter:

25-76mm

Material:

HRC,CRC,Galvanised Steel

Mill Speed:

30-100m/min

Welding Type:

High Frequency Welding

Thickness:

1.0-3.0mm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Supply Ability:

50Sets/Year

Product Description

Precision Tube Mill Pipe diameter 25-76mm high frequency welded Precision Tube Mill

Product Specifications

Attribute	Value
Pipe shape	Precision Tube Mill Pipe diameter 25-76mm high frequency welded
Pipe diameter	25-76mm
Material	HRC, CRC, Galvanised Steel
Mill speed	30-100m/min
Welding Type	High Frequency Welding
Thickness	1.0-3.0mm

Product Overview

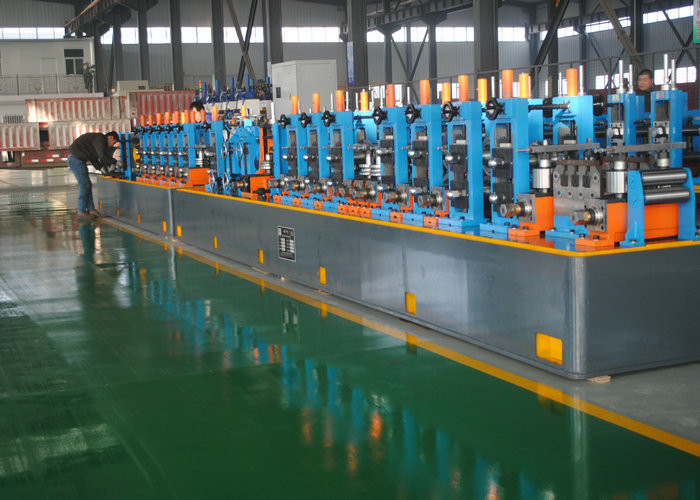

The HG60 high frequency straight welded pipe production line manufactures welded steel pipes of Φ21.3mm-Φ33.7mm with 1.0mm-3.25mm wall thickness, capable of producing same size profiled pipes. Incorporating advanced domestic and international pipe making technology, our innovative design offers both economical and practical solutions.

Technical Specifications

Feature	Detail
Type	New Pipe Production Line
Pipe Material	Carbon Steel
Application	Energy Supply Pipe
Production Capacity	30-100m/min
Power	200KW
Round Pipe Range	φ20-φ60mm
Power Supply	380V, 50Hz (Customizable)
Machine Area	7*65M³
Strip Steel Width	65-110mm
Warranty	One Year

Production Process

material(steel coil) -> uncoiler -> shear and welder -> horizontal(or cage) accumulator -> forming mill -> HF solid welder -> sizing mill -> roughly straightening(turkey head) -> cut off machine -> run out table

Key Advantages

Continuous production capability without roller changes in rough-forming section
Reliable welding seam technology for consistent quality
Produces most stainless steel pipes used in construction applications
Low production cost with high production capacity

Usage & Precision

Maintains product shape and precision through welded sheet structure, motor reducer drive, and chain transmission. Chromed rollers ensure smooth molding plate surfaces resistant to marking during stamping.

About Tengtian Tube Mill Co., Ltd.

Specializing in high-frequency welded pipe equipment and cold bend steel equipment manufacturing, we combine Japanese advanced technology with strict manufacturing standards. Our products feature advanced configurations, stable quality, and excellent performance, serving domestic markets and exporting to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and more.

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (months to 1 year) to optimize output and reduce costs
Complete project design services for stainless steel/carbon steel pipe production
Full responsibility for loading and shipping
