High Frequency Welding ERW Pipe Machine 21-63mm Diameter
High Frequency Welding ERW Pipe Machine 21-63mm Diameter
  • High Frequency Welding ERW Pipe Machine 21-63mm Diameter
  • High Frequency Welding ERW Pipe Machine 21-63mm Diameter

High Frequency Welding ERW Pipe Machine 21-63mm Diameter

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG50
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
HG50
Product Name:
High Frequency Welding ERW Pipe Making Machine 380V 440V 50HZ
Adjustment Ty:
By Turbine Worm
Worm Gearing:
Max.80m/min
Cutting Saw:
Friction Saw Cutting
Pipe Diameter:
21 - 63mm
Max.Thickness For Square Pipe:
0.8-3.0mm
Keywords:
Welding ERW Pipe Making Machine
Highlight:

High Light

Highlight:

erw tube mill

,

stainless tube mills

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welding ERW Pipe Making Machine 380V 440V 50HZ
Product Specifications
Attribute Value
Product Name High Frequency Welding ERW Pipe Making Machine 380V 440V 50HZ
Adjustment Type By turbine worm
Worm Gearing Max. 80m/min
Cutting Saw Friction Saw Cutting
Pipe Diameter 21 - 63mm
Max. Thickness for Square Pipe 0.8-3.0mm
Product Overview
This equipment is specially designed for producing Φ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipes and corresponding square pipes (17*17-62*62mm, 1.2-3.0mm). The complete system includes components from uncoiler to fixed length cutting saw, with rolling speed adjustable according to pipe diameter and wall thickness.
Material Specifications
  • Raw material: Low-carbon steel
  • Thickness: 1.0-3.5mm
  • Width: 60-240mm
  • I.D. of steel coil: Φ450-Φ550mm
  • O.D. of steel coil: Φ800-Φ1200mm
  • Maximum weight: 2500kgs
Processing Capabilities
  • O.D. of pipe: Φ20-Φ80mm
  • Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
  • Length: 4-8m
  • Milling speed: 60-70m/min
  • High-frequency equipment power: 250 KW (Solid state)
  • Voltage: 380V/440V, 50HZ
Main Components
  • Uncoiler: 1 set
  • Shearing and butt-welder: 1 set
  • Accumulator: 1 set
  • Forming, Welding & sizing unit: 1 set
  • Computer-controlled tracking cutting saw: 1 set
  • Run-out table: 1 set
  • Solid-state high-frequency welder: 1 set

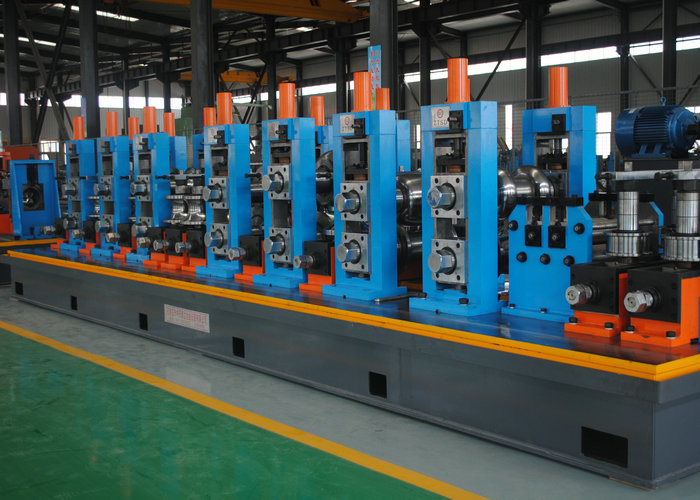

Product Images
High Frequency Welding ERW Pipe Machine 21-63mm Diameter 0
High Frequency Welding ERW Pipe Machine 21-63mm Diameter 1
Key Features
Industry's first two-year free warranty with quality assurance. Certified to IS09001:2000 international standards.
This high-frequency welded pipe machine produces straight seam welded pipes using high-frequency resistance to heat and fuse pipe edges, offering superior welding speed ideal for oil and gas pipelines.
Technical Process
High Frequency Welding ERW Pipe Machine 21-63mm Diameter 2
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
