Automatic ERW Tube Mill for Carbon Steel Pipes 25-76mm

Name: Automatic ERW Tube Mill for Carbon Steel Pipes 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001/BV/CE
Model Number:	HG76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001/BV/CE

Model Number:

HG76

Product Name:

Automatic Welded Steel Pipe Production Line/ERW Tube Mill Sales To Mexico

Pipe Material:

Carbon Steel

Condition:

New

Pipe Shape:

Round,square

Pipe Diameter:

25-76mm

Thickness:

1-4mm

Speed:

30-120m/min

Keywords:

Automatic Steel Pipe Production Line

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

100 units one year

Product Description

Automatic Welded Steel Pipe Production Line/ERW Tube Mill

Product Specifications

Attribute	Value
Pipe Material	Carbon Steel
Condition	New
Pipe Shape	Round, Square
Pipe Diameter	25-76mm
Thickness	1-4mm
Speed	30-120m/min

Product Description

This national standard model production line primarily manufactures steel pipes including water-gas pipes and structural pipes.

The forming and sizing unit utilizes a combination of FF forming and FFX forming to produce steel pipes through HF induction welding. The heating method employs either HF induction or contact welding, where the steel pipe is formed into the desired profile by forming rolls. High frequency current creates skin and proximity effects, concentrating induced electricity on the bonding surface for rapid heating to welding temperature, completing pressure welding when squeezed by rolls.

Key Advantages

Multiple shared rolls for efficient operation
Simple adjustment mechanisms
High quality weld seams
Sturdy machine frame construction
User-friendly operation and maintenance

Line Composition

Hydraulic coil loading car: 1 unit
Hydraulic double end uncoiler: 1 unit
Head unbender and leveler: 1 unit
Cutter & butt welder: 1 unit
Spiral accumulator: 1 unit

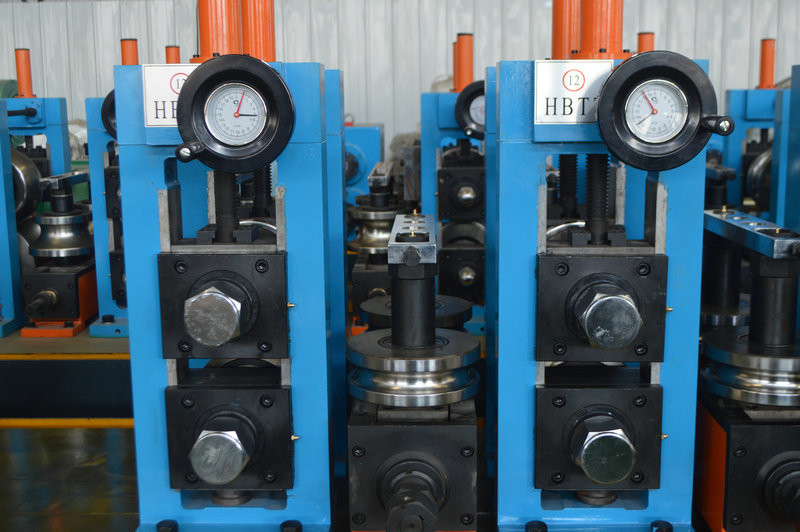

Forming and sizing unit: 1 unit
Electronic flying saw: 1 unit
800KW state high frequency generator
Flying saw downstream roller table: 1 set (30m)
Full line hydraulic system: 1 set
Mould: material GCr15; squeeze roll 3Cr2W8V HRC59 (58-62)

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main Power(kw)	HF Welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
