Product Details:
Payment & Shipping Terms:
|
| Pipe Material: | Carbon Steel | Condition: | New |
|---|---|---|---|
| Pipe Shape: | Round,square | Pipe Diameter: | 25-76mm |
| Thickness: | 1-4mm | Speed: | 30-120m/min |
| High Light: | stainless tube mills,slitting line machine |
||
National standard model mainly produces the steel pipe, such as water-gas pipe, structure pipe and so on.
Forming and sizing unit uses combination of FF forming and FFX forming to produce steel pipes through HF induction welding. Heating method uses HF induction or contact welding, i.e. steel pipe fed into the mill is formed into pipe profile by forming rolls. With skin effect and proximity effect of high frequency current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe to heat it up quickly to welding temperature, and finishes pressure welding when pipe fringes squeezed together by squeezing roll. After normalizing, cooling, sizing and primary straightening, steel pipe of desired size is produced.
Advantage of the line:
More shared rolls, easy adjustment, high quality weld seam, sturdy machine frame, easy operation and maintenance.
Line composition:
Hydraulic coil loading car: 1 unit
Hydraulic double end uncoiler: 1 unit
Head unbender and leveler: 1 unit
Cutter & butt welder: 1 unit
Spiral accumulator: 1 unit

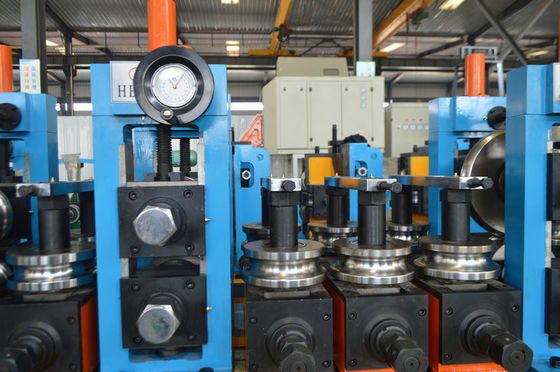

Forming and sizing unit: 1 unit
Electronic flying saw: 1 unit
800KW state high frequency generator:
Flying saw downstream roller table: 1 set (30m)
Full line hydraulic system: 1 set
Mould: material GCr15; squeeze roll 3Cr2W8V HRC59 (58-62)
More Specification
| Model | Diameter(mm) | Thickness(mm) | Speed(m/min) | Main power(kw) | HF welder(KW) | Area(m2) |
| HG32 | 10-32 | 0.4-1.5 | 30-100 | 250 | 100 | 12x100 |
| HG50 | 12-50 | 0.6-2.5 | 30-90 | 300 | 150 | 12x100 |
| HG76 | 12-76 | 1-3 | 30-90 | 320 | 200 | 12x100 |
| HG89 | 32-89 | 1-4 | 30-80 | 350 | 300 | 12x100 |
| HG114 | 45-114 | 1.5-5.0 | 30-60 | 400 | 300 | 12x100 |
| HG165 | 60-165 | 3-7 | 30-50 | 600 | 400 | 12x100 |
| HG219 | 114-219 | 4-8 | 20-40 | 800 | 500 | 15x150 |
| HG273 | 114-273 | 4-10 | 15-30 | 1000 | 600 | 18x160 |
| HG325 | 165-325 | 4-10 | 10-30 | 1200 | 600 | 12x100 |
| HG426 | 165-426 | 4-12.7 | 8-25 | 1400 | 800 | 12x100 |
| HG508 | 219-508 | 4-16 | 8-20 | 2000 | 1000 | 12x100 |
