| Product Name: | ERW Carbon Steel Tube Mill For Pipe Making Machine | Pipe Material: | Carbon Steel |
|---|---|---|---|
| Voltage: | 380V/220V | Weight: | About 10 Tons |
| Dimension(l*w*h): | 40m*3m*2m | Power(w): | 300 |
| Pipe Shape: | Round,square | Pipe Diameter: | 16-76mm |
| Thickness: | 0.7-2.5mm | Keywords: | Pipe Making Machine |
| Highlight: | erw tube mill,slitting line machine |
||

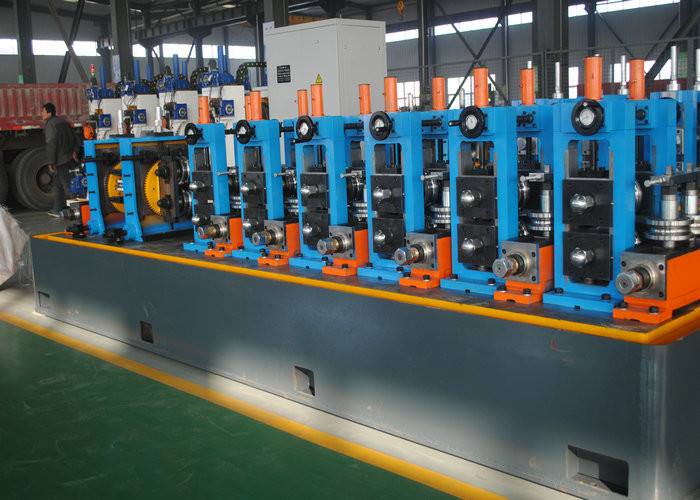

The HG60 mill is intended for manufacturing of round pipe of Φ22mm-Φ76mm thickness is 0.8-3.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
ERW Pipe making machine Technical Process:
SteelTape →→ Un-coiler →→ Strip-head Cutter and welder →→Spiral accumulator →→ Forming section(Flattening unit +Main driving unit+Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) →→ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→ Flying saw under computer-control →→ Run-out table
Machine composion:
| No. | Name of the production line part | Qty |
| 1 | Double-head uncoiler | 1 |
| 2 | Accumulator (Cage loop or horizontal spiral) | 1 |
| 3 | Flattening | 1 |
| 4 | Deburr frame | 1 |
| 5 | Horizontal roller | 13 |
| 6 | Speed testing wheel | 1 |
| 7 | Computer-controlled flying saw | 1 |
| 8 | Run out table | 1 |
| 9 | Vertical roller | 15 |
| 10 | Turk's head | 1 |
| 11 | Transmission box | 1 |
| 12 | Main driving spindle | 7 |
| 13 | High-frequency induction welding machine | 1 |
