Home > products >
Steel Slitting Machine
>

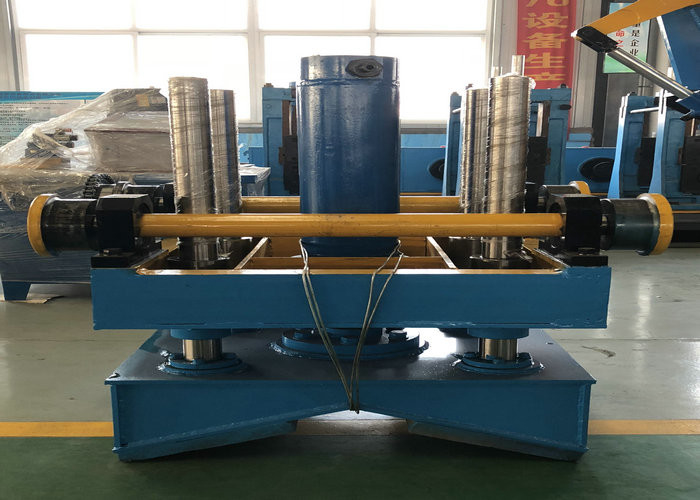

Automatic High Precision Steel Slitting Machine 0.5-4.0mm
  • Automatic High Precision Steel Slitting Machine 0.5-4.0mm
  • Automatic High Precision Steel Slitting Machine 0.5-4.0mm
  • Automatic High Precision Steel Slitting Machine 0.5-4.0mm

Automatic High Precision Steel Slitting Machine 0.5-4.0mm

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: SJ1600*4
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
SJ1600*4
Material:
Carbon Steel,stainless Steel
Product Speed:
Max 120m/min
Steel Thickness:
0.5-4.0mm
Special Require:
Can Design According To The Customer
Type:
Carbon Steel Slitting Machine
Highlight:

High Light

Highlight:

sheet metal slitter machine

,

strip slitting machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
two months
Payment Terms:
Western Union,L/C,T/T
Supply Ability:
100 set per year
Product Description
Automatic High Precision Steel Slitting Machine / Metal Slitting Line
Product Specifications
Attribute Value
Material Carbon steel, stainless steel
Product Speed Max 120m/min
Steel Thickness 0.5-4.0mm
Special Requirements Can be customized according to customer needs
Type Carbon Steel Slitting Machine
Product Description
Automatic High Precision Steel Coil Slitting Line Machine designed for efficient metal processing applications.
Key Features
  • Easy to operate with high slitting quality
  • Excellent material utilization
  • Stepless shearing speed regulation
  • Precision slitting with ±0.15mm accuracy
  • Customizable design available
Applications
Ideal for longitudinal shearing and rewinding of various metal coils including:
  • Tinplate
  • Silicon steel
  • Aluminum
  • Copper
  • Stainless steel
  • Galvanized steel
Machine Structure
Comprehensive system includes:
  • Uncoiler
  • Feeding and positioning unit
  • Slitting unit
  • Recoiler
Technical Parameters
Parameter Specification
Processing Thickness 0.3~4mm
Processing Width 1350mm
Slitting Accuracy ±0.15 mm
Slitting Speed 120m/min
Coil Inner Diameter 500/610 mm
Coil Outer Diameter ≤2000 mm
Max. Slitting Numbers 6-22pcs
Slitting Coil Width ≥20 mm

Tags:

sheet metal slitter machine,

strip slitting machine,

slitting line machine
