Home > products >
ERW Pipe Mill
>
Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel
  • Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel
  • Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel
  • Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel

Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
Steel ERW Pipe Mill / Straight Seam Welded Pipe Production Line
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Worm Gearing:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Adjusting:
Worm Gearing
Keywords:
Welded Pipe Production Line
Highlight:

High Light

Highlight:

erw tube mill

,

stainless tube mills

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Steel ERW Pipe Mill / Straight Seam Welded Pipe Production Line
Product Name
Steel ERW Pipe Mill / Straight Seam Welded Pipe Production Line
Pipe Diameter
21 - 63mm
Material
Carbon steel, stainless steel, low alloy steel
Cutting Saw
Friction Saw Cutting
Worm Gearing
Max. 80m/min
Pipe Thickness
4.0-10.0mm
Product Overview

This pipe mill is specially designed for producing Φ19-Φ63.5mm, δ0.8-2.5mm high-frequency straight seam welded pipes, including corresponding square pipes and special-shaped pipes (δ≤2.0mm). The complete equipment setup ranges from uncoiler to fixed length cutting saw, with adjustable rolling speed based on pipe diameter and wall thickness requirements.

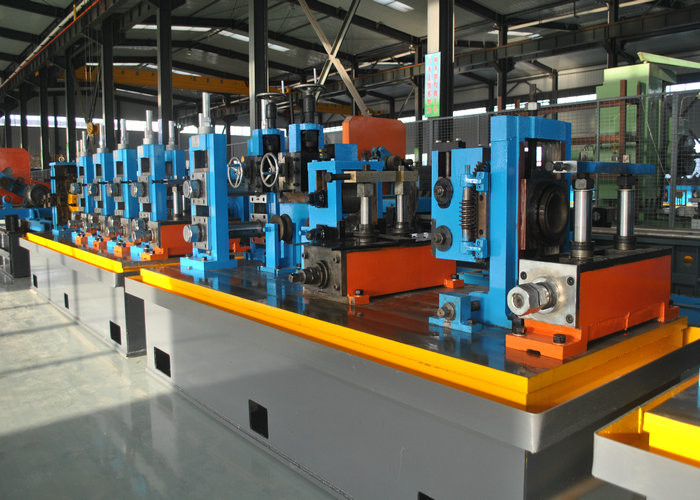

Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel 0
Applicable Material Specifications
Item Specification
Hot or cold-rolled steel strip As per GB700-88 or GB1591-88
Material Low-carbon steel, low alloy steel δs≤345Mpa, δb≤610Mpa
The thickness of steel strip 0.8-2.5mm (As per GB708-88)
The width of steel strip 60-200mm
I.D. of steel coil Φ450-Φ550mm
O.D. of steel coil Φ800-Φ1200mm
Maximum weight coil 2500kgs
Dimension Range of Processing Steel Pipe
Item Specification of pipe mill
O.D. Φ19-Φ63.5mm
Wall thickness 0.8-2.5mm (square pipe and special-shaped pipe δ≤2.0mm)
Length 4-8m
Machine Features
  • Large diameter roller shafts made from 42CrMo material with substantial quantity
  • Equipped with dual motors for enhanced efficiency
  • High tube making efficiency with excellent straightness
  • High reliability with low failure rate
  • User-friendly operation
  • Computer saw utilizes Shengyang brand, recognized as the best domestic quality
  • High frequency welder features the top Chinese brand
Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel 1 Steel ERW Pipe Mill for 21-63mm Carbon Stainless Low Alloy Steel 2
ERW Tube Mill Other Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Our Services
  • On-site engineer support for installation and worker training
  • One year quality guarantee with lifetime repair service
  • Comprehensive pre-sale and after-sale services including workshop design and production output planning
  • Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
  • Complete project design services for stainless steel and carbon steel pipe production
  • Full responsibility for loading and shipping arrangements
