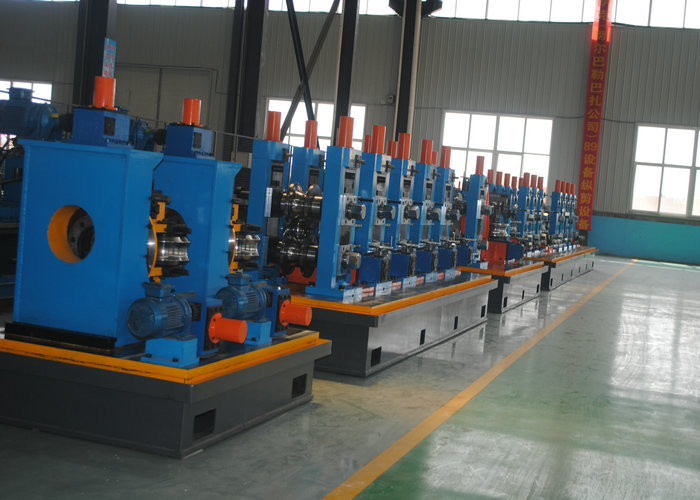

Fast Speed ERW Carbon Steel Tube Mill For Pipe Making Machine, CE/ISO Certified
Product Specifications
| Attribute |
Value |
| Max. Thickness for Square Pipe |
0.8-3.0mm |
| Production Speed |
Max 50m/min |
| Material Compatibility |
Carbon steel, low alloy steel |
| Pipe Diameter Range |
21 - 63mm |
| Certifications |
CE, ISO |
| Worm Gearing Speed |
Max. 80m/min |
Product Overview
The ERW219 high frequency longitudinal welded pipe production line is engineered to manufacture welded pipes with 89mm-219mm outer diameter and 2.0mm-8.0mm wall thickness, including corresponding square and rectangular pipes.
Common Applications
- Architectural structure tubes
- Low-pressure liquid tubes
- Coal transmission belt tubes
- Drive shaft tubes
- Guardrail tubes
- Tower footing tubes
- Automobile beam steel tubes
Key Advantages
- ZTF forming process reduces roller usage by up to 60%
- Direct square forming technology enables production of all pipe sizes with one set of rollers
- Automated electric control system ensures high precision and rapid roller change capability
Production Process
- Material (steel coil)
- Uncoiler
- Shear and welder
- Horizontal (or cage) accumulator
- Forming mill
- HF solid welder
- Sizing mill
- Rough straightening (turkey head)
- Cut off machine
- Run out table
Technical Features
This high-frequency welded tube mill line produces round tubes with diameters of 25.4-114mm and wall thicknesses of 0.8-4.0mm. Utilizing roll forming technology, it processes steel strip into various shapes. The system employs high frequency induction heating to create section material of diverse diameters and sizes by welding seams into closed shapes. Advanced aperture technology, PLC automatic control, and British Eurasia digital speed-regulating units ensure reliable operation and easy maintenance.
Our Services
On-site engineer support for installation and operator training
One-year quality guarantee with lifetime repair support
Comprehensive pre-sales services including workshop and production output design
After-sales support including installation, training, and technical assistance
Option for extended engineer support (several months to one year) to optimize production
Complete project design services for stainless steel and carbon steel pipe production
Full loading and shipping coordination
Frequently Asked Questions
What types of stainless steel pipe welding equipment are available?
Equipment is classified by application: Industrial stainless steel pipe making machines and decorative stainless steel pipe making machines.
What are the main components of the equipment?
- Decoiler: Holds and feeds steel strip into the forming section
- Forming section: Utilizes scroll welded pipe dies
- Welder: Performs the welding operation
- Grinding section: Processes weld seams
- Straightening and sizing section: Fine-tunes pipe diameter
- Cutting section: Hydraulic or grinding wheel cutting
- Length fixing: Automated material definition
What are the key features of FOSHAN YXH equipment?
Our equipment is known for durability, high precision, full automation, ease of operation, continuous production capability, high efficiency, minimal material waste, excellent finished product rate, and low production costs.
What causes welding leakage in steel pipes?
- Improper welding torch position
- Misaligned welding torch
- Excessive current causing melting
- Insufficient current for proper welding
- Lack of argon causing unfocused welding
- Contamination (water or oil) on molds or steel
What additional equipment and materials are needed for production?
A complete setup requires the pipe making machine, welder, molds/dies/rollers, polishing machines (round or square), polishing materials, and steel strip.
