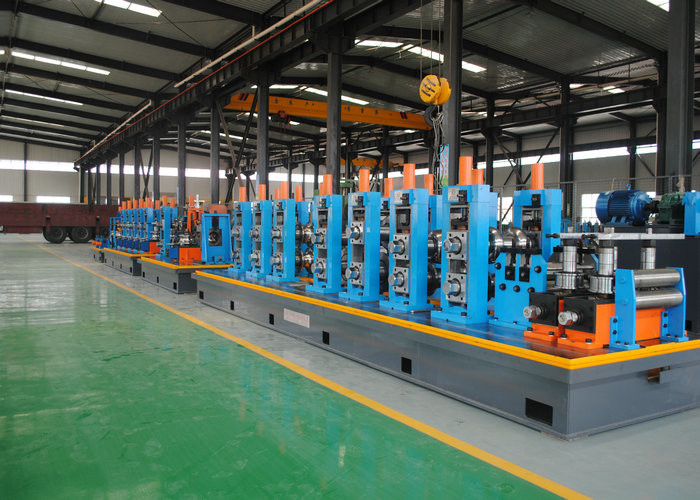

CE / ISO Welded Pipe Making Machine Or ERW Tube Mill Line High Precision
Product Specifications
| Attribute |
Value |
| Max. Thickness for Square Pipe |
0.8-3.0mm |
| Product Speed |
Max 50m/min |
| Material Compatibility |
Carbon steel, stainless steel, low alloy steel |
| Pipe Diameter |
21 - 63mm |
| Certification |
CE ISO |
| Worm Gearing Speed |
Max. 80m/min |
Technical Specifications
Product Yield:
Round Pipe: 89mm-219mm (Thickness: 2.0mm-8.0mm)
Square & Rectangle Tube: 70mm×70mm - 170mm×170mm (Thickness: 2.0mm-6.0mm)
Length: 6m-12m (Length Tolerance: ±3mm)
Production Speed: 20-50 m/min
Production Capacity: 35,000 ton/year
Consumption: Mill installed capacity: 280 kw
Line Area: 100m(length) × 9m (width)
Workers Required: 6-8 workers
Raw Material Specifications
Carbon steel coil Q235B (ASTM GR*D, σs 230)
Width: 280mm-690mm (Thickness: 2.0mm-8.0mm)
Coil ID: 600-800mm
Coil OD: Max 2000mm
Coil Weight: 8.0t
Technical Process Flow
- Scrolling up
- Uncoiling
- Shear and Welding
- Spiral accumulator
- Forming
- H.F. induction welding
- External burr removing
- Cooling
- Sizing
- Flying saw
- Run out table
- Inspecting
- Packing
- Warehouse
Forming Process
Round Pipe:
- Cold roll forming process: Good roller design
- ZTF forming process: Save roller up to 60% and realize electric control adjustment
Square & Rectangular Pipe:
- General round-to-square process: Stable forming process
- Round to square with turkshead: Good pipe quality, reach same wall thickness with round pipe
- Process of directly forming into square shape: One set of roller can produce all pipe sizes & realize electric control and automatic adjustment
Our high-frequency welded tube mill line is designed to produce round tube diameter of 25.4 - 114 mm, and wall thickness of 0.8 - 4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed-regulating unit ensure that the production line works reliably and operates and maintains easily.
Our Services
- On-site engineer support for installation and worker training
- One year quality guarantee with life guarantee repair
- Pre-sell services including workshop design and production output design
- After-sell services including installation, training, and skilled engineer support
- Option for long-term engineer support (several months to 1 year) to improve output and reduce waste
- Complete project design for stainless steel/carbon steel pipe making
- Responsibility for loading and shipping
Frequently Asked Questions
What are the types of stainless steel pipe welder equipment?
Stainless steel pipe welder equipment is classified by use: Industrial stainless steel pipe making machine, Decorative stainless steel pipe making machine.
What are the supporting parts of stainless steel equipment?
1. Decoiler: According to the specifications of the pipe to buy steel strip, put the coil up material on the shelf, introduction of forming part.
2. Forming Part: Using the scroll welded pipe dies.
3. Welder: Welding.
4. Grinding Part: Weld grinding.
5. Straightening and Sizing Part: Fine-tuning pipe diameter.
6. Cutting Part: Metal hydraulic cutting or grinding wheel cutting.
7. Length fixed: Automatic defining material.
What are the features of FOSHAN YXH stainless steel pipe welder equipment?
FOSHAN YXH stainless steel pipe welder equipment is sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less waste of materials, the rate of finished product is high, low production cost.
Why steel pipe leakage welding?
1. Welding torch position is too high
2. Welding torch around is not aligned
3. Current is too high to melt
4. Welding current is too small is not on
5. No argon welding fire do not focus (Replace argon)
6. Mould and steel with water or oil, caused by welding fire is not focused (With Nitrocellulose lacquer thinner, turpentine or toluene cleaning steel strip)
What are the production of stainless steel pipe welder equipment and accessories needed?
A whole set of stainless steel pipe welder equipment including, pipe making machine, welder, mould(die/roller), round pipe polishing machine/square pipe polishing machine, polishing material, steel strip, etc.
