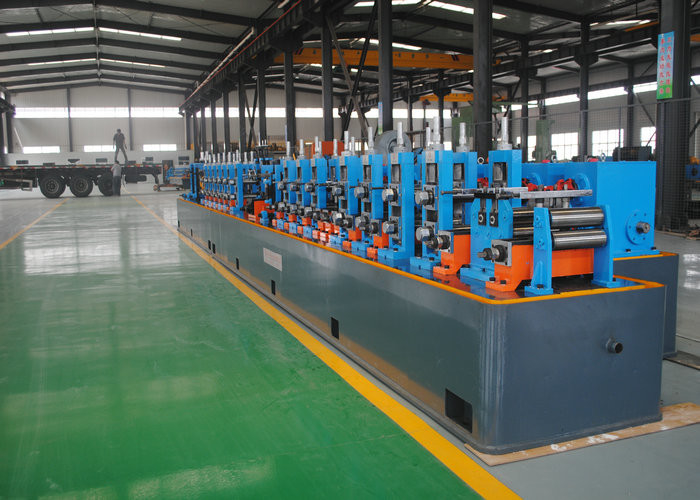

Carbon Steel ERW Pipe Mill / Tube Mill Line
Certified: CE, ISO9001, BV
Key Specifications
| Attribute |
Value |
| Max.Thickness for Square Pipe |
0.8-3.0mm |
| Production Speed |
Max 50m/min |
| Material Compatibility |
Carbon steel, stainless steel, low alloy steel |
| Pipe Diameter Range |
21 - 63mm |
| Certifications |
CE, ISO |
Product Overview
This Carbon Steel ERW Tube Mill Line is designed for producing high-quality stainless steel pipes used in furniture, hand railings, household appliances, curtain rails, and other decorative applications. The versatile system can manufacture round, square, rectangular, oval, and custom-shaped pipes.
Technical Specifications
| Product & Yield |
Dimensions |
| Round Pipe |
89mm-219mm diameter, 2.0mm-8.0mm thickness |
| Square & Rectangle Tube |
70mm×70mm -170mm×170mm, 2.0mm-6.0mm thickness |
| Length |
6m-12m (±3mm tolerance) |
| Production Speed |
20-50 m/min |
| Annual Capacity |
35,000 tons/year |
| Power Consumption |
280 kW installed capacity |
| Line Dimensions |
100m (length) × 9m (width) |
| Workforce |
6-8 workers |
Raw Material Specifications
- Material: Carbon steel coil Q235B (ASTM GR*D, σs 230)
- Width: 280mm-690mm
- Thickness: 2.0mm-8.0mm
- Coil ID: 600-800mm
- Coil OD: Max 2000mm
- Coil Weight: 8.0t
Production Process Flow
Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator → Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table → Inspecting → Packing → Warehouse
Forming Process Options
- Round Pipe: Cold roll forming process with optimized roller design or ZTF forming process that saves rollers by 60% with electric control adjustment
- Square/Rectangular Pipe: Standard round-to-square process, round-to-square with turkshead for uniform wall thickness, or direct forming with electric control and automatic adjustment
Technical Features
- Produces round tubes from 25.4mm to 114mm diameter with 0.8-4.0mm wall thickness
- Utilizes high frequency induction heating for precise welding
- Advanced aperture technology for reliable operation
- PLC automatic control system
- British Eurasia Digital speed-regulating unit
Our Services
1. On-site installation and operator training by our engineers
2. Comprehensive warranty: 1-year quality guarantee with lifetime repair support
3. Complete pre-sales and after-sales support including workshop design and production optimization
4. Optional extended engineer support (months to 1 year) for production optimization
5. Full project design services for stainless/carbon steel pipe production
6. Responsible for loading and shipping arrangements
Frequently Asked Questions
What types of stainless steel pipe welder equipment are available?
Industrial stainless steel pipe making machines and decorative stainless steel pipe making machines.
What are the key components of the equipment?
The system includes decoiler, forming section, welder, grinding unit, straightening/sizing section, cutting mechanism, and length fixing components.
What are the advantages of this equipment?
Sturdy construction, high precision, full automation, easy operation, continuous production, high efficiency, minimal material waste, excellent finished product rate, and low production costs.
What causes welding leakage?
Common causes include improper torch positioning, misalignment, incorrect current settings, lack of argon, or contaminated materials.
What additional equipment is needed?
Complete setup includes pipe making machine, welder, molds/dies, polishing machines, polishing materials, and steel strip.
