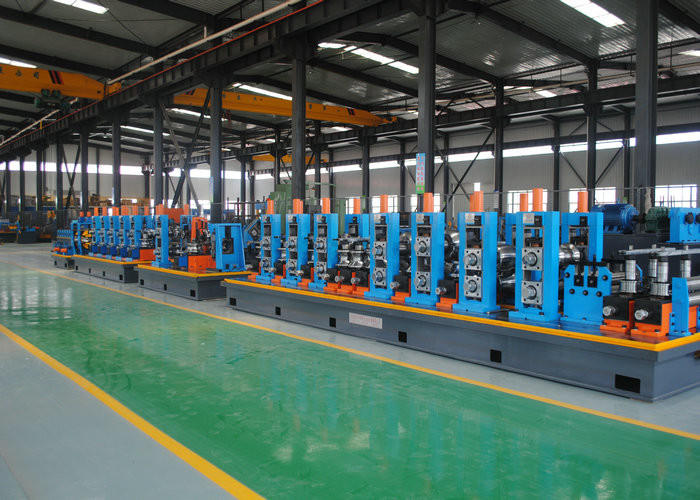

Galvanized ERW Pipe Mill Machine 21-63mm Diameter High Precision

Name: Galvanized ERW Pipe Mill Machine 21-63mm Diameter High Precision
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Adjustment Ty:

By Turbine Worm

Product Name:

Galvanized Erw Pipe Mill And Tube Making Machine With High - Precision

Keywords:

Tube Making Machine

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

Galvanized ERW Pipe Mill and Tube Making Machine with High-Precision

Product Specifications

Attribute	Value
Max.Thickness for Square Pipe	0.8-3.0mm
Product Speed	Max 50m/min
Material	Carbon steel, Stainless steel, Low alloy steel
Pipe Diameter	21 - 63mm
Certification	CE ISO
Worm Gearing	Max.80m/min
Adjustment Type	By turbine worm

Product Details

Brand: Tengtian tube mill
Product: High precision straight seam stainless steel tube/pipe mill machine
Colour: White/Green/Blue
Voltage: 220/380/415/440V
Useful time: 20 years
Warranty Time: 1 year

Production Process

Decoiler → Branding → Forming → Welding → Sizing → Straightening → Length fixing → Cutting → Unloading

Key Advantages

Time-saving: Replace the mould in just 40 minutes
High efficiency: Tube Mill speed is 40% higher than peers
High-quality: The yield more than 98%

Applications

Mainly used to produce decorative pipes for:

Furniture
Doors
Hand railings
Windows
Household electric appliances
Construction (greenhouses, steel structures)

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120

Technical Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Our Services

Engineer support for installation and worker training
One year quality guarantee with life guarantee repair
Pre-sell services: workshop design, production output design
After-sell services: installation, training, and skilled engineer support
Long-term engineer support available (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping
