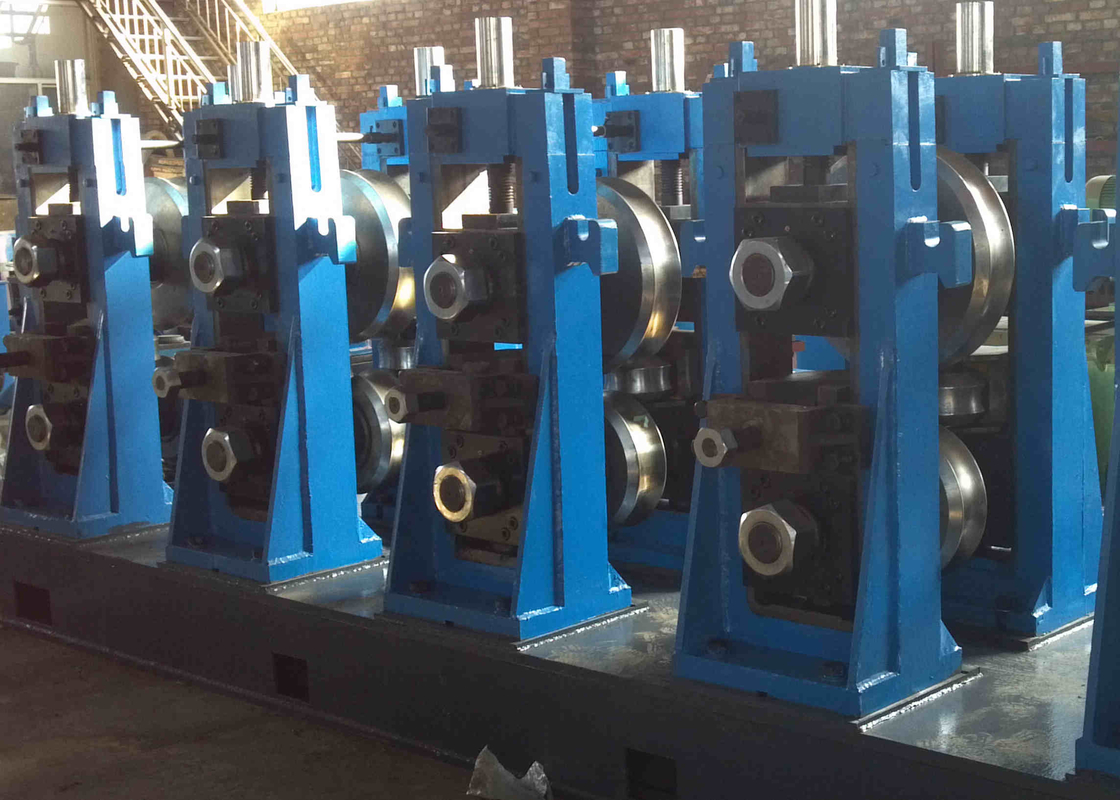

High Speed ERW Pipe Mill for Round Pipes 21-63mm Diameter

Name: High Speed ERW Pipe Mill for Round Pipes 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making

Max.Thickness For Square Pipe:

0.8-3.0mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Keywords:

High Speed Round Pipes Making

Highlight:

High Light

Highlight:

erw tube mill

stainless tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making

Attribute	Value
Product Name	High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making
Max.Thickness for Square Pipe	0.8-3.0mm
Product Speed	Max 50m/min
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Certification	CE ISO
Worm Gearing	Max.80m/min

Round Pipes Making Machine Welded ERW Pipe Mill Equipment

Brief introduction of ERW tube mill & pipe mill

The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.
It starts by uncoil and flatten the slitted steel coils into steel strips.
The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.
The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.
The welded tubes will be formed to expected shape or size in a sizing machine. Finally the tubes will be cut to length and bundled.

Machine parts in the working line

Uncoiler
Hoop cage or Horizontal Accumulator
Main Machine:
- Forming Machine
- Roller System of Forming
- Seam Guide
- High Frequency Induction Welding Machine
- Roller System for Moving
- Burr Removing Frame (Inside and outside Burr)
- Water Cooling System
- Sizing Machine
- Roller System of Leveling
- Speed Testing Wheel
- Turkish Frame
- Auto Flying Saw Controlled by Computer
- Run out table
- Electric Control Equipment
- High Frequency Welding Machine

High-frequency welded tube mill line is designed to produce round tube diameter of 25.4 - 114 mm, and wall thickness of 0.8 -4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed-regulating unit ensure that the production line works reliably and operates and maintains easily.

Our Services

We will send the engineer for the installation and training your workers how to operate this machine in correct way.
Warranty Team: One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
We supply the pre-sell and after-sell service:
- Pre-sell service: workshop design, and production output design
- After-sell service: installation and training, and the skilled engineer for working
We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
We will be responsible for the loading and shipping.
