High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making

High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making
High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making

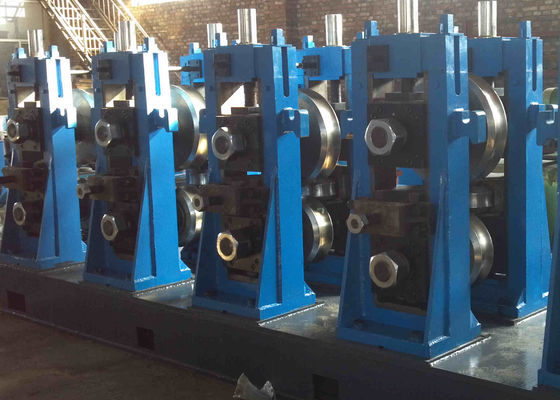

Large Image :  High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: three months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 set per year
Contact Now
Detailed Product Description
Max.Thickness For Square Pipe: 0.8-3.0mm Product Speed: Max 50m/min
Material: Carbon Steel,stainless Steel,low Alloy Steel Pipe Diameter: 21 - 63mm
Certification: CE ISO Worm Gearing: Max.80m/min
Adjustment Ty: By Turbine Worm
High Light:

erw tube mill

,

stainless tube mills





High Speed Precision Welded ERW Pipe Mill Equipment Round Pipes Making





  • Round Pipes Making Machine Welded ERW Pipe Mill Equipment

1.Brief introduction of ERW tube mill & pipe mill

  • The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.
  • It starts by uncoil and flatten the slitted steel coils into steel strips.
  • The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.
  • The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.
  • The welded tubes will be formed to expected shape or size in a sizing machine. Finally the tubes will be cut to length and bundled.



2. Machine parts in the working line

(1) Uncoiler

(2) Hoop cage or Horizontal Accumulator

(3) Main Machine:

  • Forming Machine
  • Roller System of Forming
  • Seam Guide
  • High Frequency Induction Welding Machine
  • Roller System for Moving
  • Burr Removing Frame (Inside and outside Burr )
  • Water Cooling System
  • Sizing Machine
  • Roller System of Leveling
  • Speed Testing Wheel
  • Turkish Frame
  • Auto Flying Saw Controlled by Computer
  • Run out table
  • Electric Control Equipmen
  • High Frequency Welding Machine



High‐frequency welded tube mill line is designed to produce round tube diameter of 25.4 – 114 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.











Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
