Product Details:
Payment & Shipping Terms:
|
| Material: | HRC,CRC,Galvanised Steel | Pipe Diameter: | 25-76mm |
|---|---|---|---|
| Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
| Adjustment Type: | By Turbine Worm | Cutting Saw: | Cold Saw & Friction Saw Cutting |
| High Light: | pipe milling machine,industrial tube mills |
||

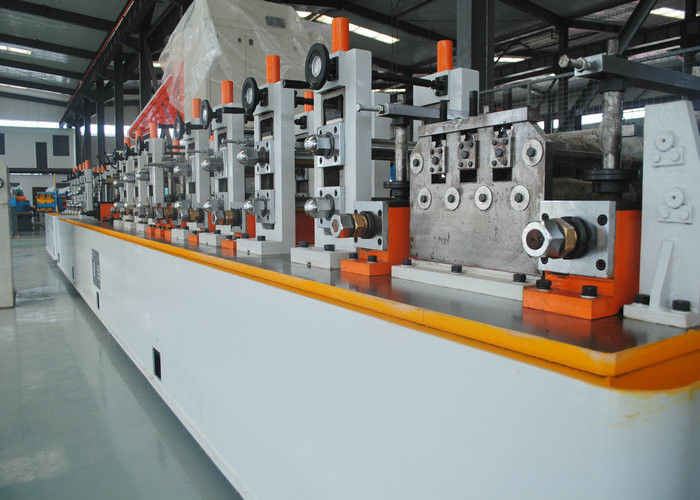

HG60 Steel Pipe Making Square Tube Mill Machine High Frequency Welding
High Precision tube mill for sale
TengTian tube mill is a series of tube machines that builds longitudinal weld seam tube with steel strips of certain width. tube mill starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the tube mill forming machine and the rollers in the tube mill will bend the strip to a round tube shape. The round tube mill machine then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The tube mill be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the tube will be cut to length and bundled.
Below is a standard flow chart and itemized equipment of our tube mill.
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
General introduction of erw pipe mill
KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.
They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Applied raw material of erw pipe mill
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.
1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
6. Steel Scaffolding Pipe 12. Building pipe
