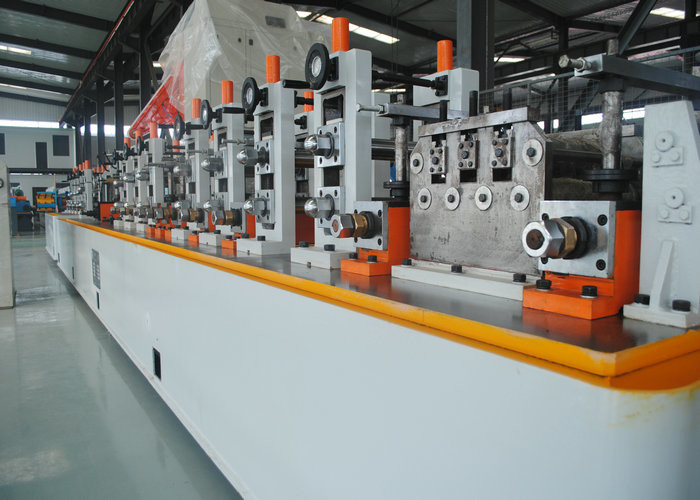

Precision Tube Mill HG60 for 25-60mm Steel Pipes High Frequency Welding

Name: Precision Tube Mill HG60 for 25-60mm Steel Pipes High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill HG60 Steel Pipe Making Square Tube Mill Machine High Frequency Welding

Pipe Diameter:

25-60mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

Precision Tube Mill HG60 Steel Pipe Making Square Tube Mill Machine

Product Specifications

Attribute	Value
Product Name	Precision Tube Mill HG60 Steel Pipe Making Square Tube Mill Machine High Frequency Welding
Pipe Diameter	25-60mm
Welding Type	High Frequency Welding
Pipe Shape	Round, Square, Rectangular
Adjustment Type	By Turbine Worm
Cutting Saw	Cold Saw & Friction Saw Cutting

Product Description

HG60 Steel Pipe Making Square Tube Mill Machine High Frequency Welding is a high precision tube mill that builds longitudinal weld seam tubes with steel strips of certain width.

The process begins by uncoiling and flattening the slit steel coils into steel strips. These strips are then inserted into the tube mill forming machine where rollers bend them into a round tube shape. The round tube is then welded using a high frequency or solid state welder before being formed to the expected shape (round, square, rectangular, etc.) or size in a sizing machine. Finally, the tube is cut to length and bundled.

Technical Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Applied Raw Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

Applications

Oil & Gas Pipes
Heating Pipe
Low-pressure Process Pipeline
Low Pressure Fire Fighting Pipeline
Sewage Pipes
Steel Scaffolding Pipe
Wire and Cable Protection Pipe
Structural Support Steel Pipe
Industrial Steel Pipes
Decoration Pipe
Water Pipe
Building Pipe
