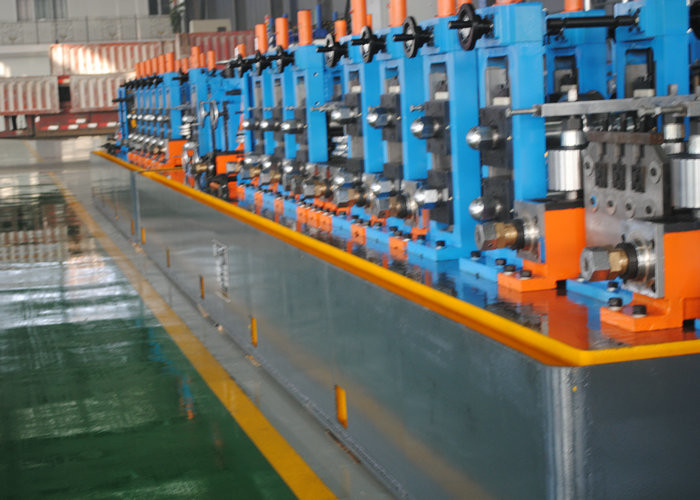

Precision Tube Mill for 25-60mm Steel Pipes with High Frequency Welding

• Material: Low carbon steel
• Mechanical properties: σB≤520mpa; σS≤340mpa
• Coil ID: φ480-φ520mm
• Coil OD: φ900-φ1800mm
• Coil weight: ≤3 tons
• Width: 230-380mm
• Installed capacity: approx. 700KVA
• Compressed air capacity: 2m³/min 4-7Kg/cm²
• Water consumption: 20tons/hr
• Water consumption for HF: 40tons/hr
• Workshop requirements: Height (6M min) × Width (12M) × Length (80M)

• Round pipe: φ76-φ127mm
• Square pipe: 60×60mm-100×100mm
• Rectangular pipe: 80×40mm-150×50mm
• Wall thickness: 1.5-3.0mm (round pipe); 1.5-2.5mm (square/rectangular pipe)

Uncoiling → Cutting and welding → Accumulator → Forming → HF welding → Deburring → Cooling → Sizing → Straightening → STD flying saw → Discharge → Checking and collecting → Packing → Weighing → Marking → Storage

Our KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. They can also produce profiled pipes including square, rectangular, and oval pipes within round pipe processing limits.

Compatible with low carbon steel, low alloy steel, galvanized steel, stainless steel, and other materials.

• Oil & Gas Pipes
• Heating Pipes
• Low-pressure Process Pipelines
• Low Pressure Fire Fighting Pipelines
• Sewage Pipes
• Steel Scaffolding Pipes
• Wire and Cable Protection Pipes
• Structural Support Steel Pipes
• Industrial Steel Pipes
• Decoration Pipes
• Water Pipes
• Building Pipes

Electrical panels are shipped in seaworthy packing with anti-rust treatment. All cargo is properly packed to withstand long-distance oceanic transportation and multiple handling. Waterproof materials are used where necessary to protect against moisture, rain, and seawater.
