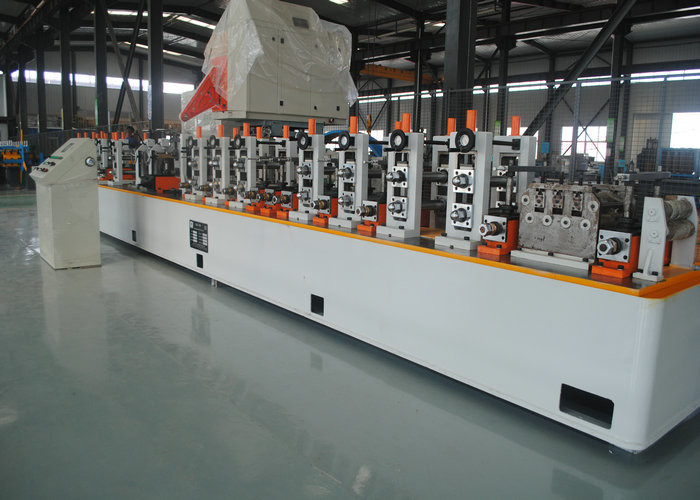

Precision Tube Mill 25-76mm High Frequency Welding Machine

Name: Precision Tube Mill 25-76mm High Frequency Welding Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill White Color High Precision Welded Tube Mill Machine Low Power Consumption

Pipe Diameter:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

Precision Tube Mill Machine Specifications

Key Attributes

Attribute	Value
Product Name	Precision Tube Mill White Color High Precision Welded Tube Mill Machine Low Power Consumption
Pipe Diameter	25-76mm
Welding Type	High Frequency Welding
Pipe Shape	Round, Square, Rectangular
Adjustment Type	By Turbine Worm
Cutting Saw	Cold Saw & Friction Saw Cutting

WG219-A Large Diameter Tube Mill Specifications

Pipe O.D (Round): 89mm-219mm (Φ3.5~Φ8.6inch)
Square Pipe: 70X70mm-170X170mm
Wall Thickness: 4.0-8.0mm
Length: 4-12m
Speed: 0-40m/min
Main Motor: 200Kwx2
H.F Welder: 600Kw

Manufacturing Process Flow

Uncoiling → Shearing and Butt Welding → Material Accumulating → Flattening → Forming System → High Frequency Induction Welding Machine → Inside and Outside Burr Removing Frame → Water Cooling System → Sizing System → Leveling System → Speed Testing → Turkish Frame → Saw Cutting → Running Out Table

Main Components

Component	Description
1	Uncoiler
2	Accumulator
3	Shearing and Butt Welding Machine
4	Forming Machine
5	Roller System of Forming
6	Seam Guide
7	High Frequency Induction Welding Machine
8	Roller System for Moving
9	Burr Removing Frame (Inside and Outside)
10	Water Cooling System
11	Sizing Machine
12	Roller System of Leveling
13	Speed Testing Wheel
14	Turkish Frame
15	Auto Flying Saw Controlled by Computer
16	Run-out Table
17	Electric Control Equipment
18	High Frequency Welding Machine

Model Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40

Applications

Oil & Gas Pipes
Heating Pipe
Low-pressure Process Pipeline
Low Pressure Fire Fighting Pipeline
Sewage Pipes
Steel Scaffolding Pipe
Wire and Cable Protection Pipe
Structural Support Steel Pipe
Industrial Steel Pipes
Decoration Pipe
Water Pipe
Building Pipe

Packaging & Shipping

Electrical panel shipped should be sea worthy packing and treated by anti-rust. The cargo shall be properly packed in seaworthy packing to the specific items. The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.

Delivery Time: 90 days after receiving the deposit
