| Product Name: | Precision Tube Mill White Color High Precision Welded Tube Mill Machine Low Power Consumption | Pipe Diameter: | 25-76mm |
|---|---|---|---|
| Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
| Adjustment Type: | By Turbine Worm | Cutting Saw: | Cold Saw & Friction Saw Cutting |
| Keywords: | Precision Tube Mill | ||
| Highlight: | pipe milling machine,industrial tube mills |
||
Packaging Details
sea worthy simply packaged or according to the customers' requirement for WG219 Steel pipe electric resistance weld mill
Delivery Time
90days after receiving the deposit

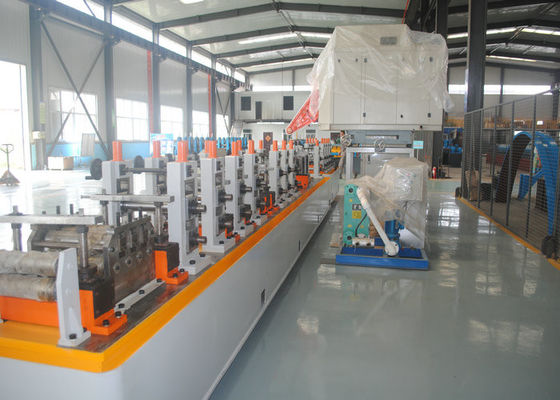

High precision erw steel tube mill
1.pipe O.D:89-219mm(3.5~ 8.6inch)
2.Square pipe:70X70-170X170mm
3.Wall thickness:4.0-8.0mm
WG219-A (large diameter) High precision erw steel tube mill :
1.pipe O.D(round):89mm-219mm(Φ3.5~ Φ8.6inch)
2.Square pipe:70X70mm-170X170mm
3.Wall thickness:4.0-8.0mm
4.length:4-12m
5.Speed:0-40m/min
6.Main motor:200Kwx2
7.H.F welder:600Kw
Craft Flow:
uncoiling→shearing and butt welding→material accumulating→flattening→forming system
→high frequency induction welding machine→inside and outside burr removing frame→
water cooling system→sizing system→leveling system→speed testing→Turkish frame→
saw cutting→running out table
Main components:
| 1 | Uncoiler |
| 2 | Accumulator |
| 3 | Shearing and butt welding machine |
| 4 | Forming machine |
| 5 | Roller System of Forming |
| 6 | Seam Guide |
| 7 | High Frequency Induction Welding Machine |
| 8 | Roller System for Moving |
| 9 | Burr Removing Frame(Inside and outside) |
| 10 | Water cooling system |
| 11 | Sizing machine |
| 12 | Roller System of Leveling |
| 13 | Speed Testing Wheel |
| 14 | Turkish Frame |
| 15 | Auto flying saw controlled by Computer |
| 16 | Run-out table |
| 17 | Electric control Equipment |
| 18 | High frequency welding machine |
necessary accessories prepared the Buyer :
| 1 | Workshop,Foundation construction |
| 2 | electric appliance work,civil engineering and necessary materials. |
| 3 | Electric connection wires and cables ,pipes(including connectors) from Power supply,air supply,water supply and hydraulic station to each equipment(control table,button station) of the production line |
| 4 | Auxiliary machine :for example lifting equipment,air compressor,air storage tank,water pump,high-pressure pumps for pipe welding machine cooling,cooling water pools for pipe-welding machine and high frequency electric equipment, volume 35m3with water pipe, water pressure meter and valve |
| 5 | Auxiliary parts and low value consumable items :for example:steel strip,welding strip,blades,Lubricating oil, cycle oil, gear box oil test run material, magnetic rod, bearing etc. |
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
General introduction of erw pipe mill
KJ Series Straight Seam High Frequency Steel erw pipe mill lines are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ219mm, wall thickness range 0.2mm-8.0mm.
They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Applied raw material of erw pipe mill
Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.
1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
6. Steel Scaffolding Pipe 12. Building pipe
Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
