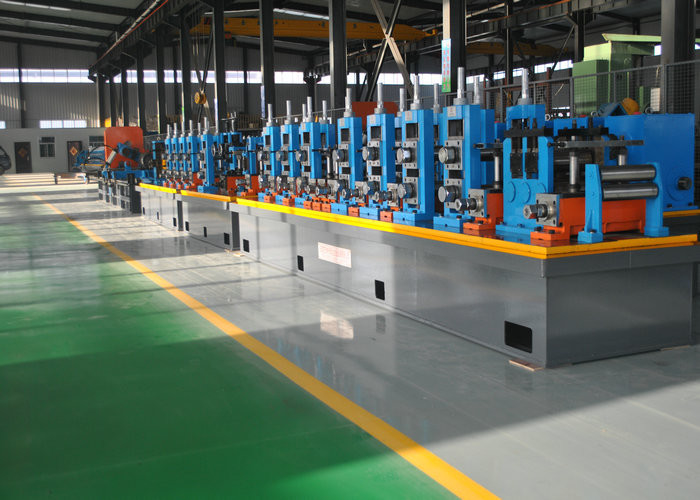

High Frequency Welded Pipe Mill for Round Square Rectangular Tubes

ERW pipe mill is designed for producing welded carbon ERW pipes, including corresponding square ERW pipes and profiled pipes. The complete equipment ranges from uncoiler to cutting saw, with rolling speed adjustable within suitable ranges for tube diameter and wall thickness.

• Manufactured from premium materials for stability, durability and long service life
• Automatic control system for easy operation
• Quick mold replacement to save working hours and increase efficiency
• Enhanced safety features for operation

Our mill utilizes roll forming theory to continuously coil steel strip into ERW pipe barrels, forming longitudinal seam joints under squeeze roller pressure. Induction welding heats the longitudinal seam through high frequency electric current concentration on the bond surface, quickly welding it into pipe blanks. After cooling, sizing and straightening, the finished ERW pipe is produced.

This ERW pipe mill is ideal for manufacturing pipes for:

• Electric heating systems
• Refrigerator components
• Automobile frames
• Fitness equipment
• Furniture manufacturing
• Cooler systems
• API pipes
• Pressure transmission systems
• Architectural and structural applications

Uncoiler → Shearing and butt-welder → Vertical-type accumulator → Forming, welding, sizing machine → Computer cutting saw → Run-out table

• Machine installation and test running
• Comprehensive operator training
• Reference documentation including foundation drawings, circuit diagrams and operation instructions
• Custom rollers designed according to buyer specifications

• On-site engineer support for installation and operator training
• One-year quality guarantee with lifetime repair support
• Pre-sale services including workshop and production output design
• After-sale services including extended engineer support for output optimization
• Complete project design for stainless steel/carbon steel pipe production
• Comprehensive loading and shipping coordination
