Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Frequency Welded Pipe Mill Tube Rolling Mill , Carbon Steel Pipe Milling Machine | Pipe Shape: | Round, Square & Rectangular |
|---|---|---|---|
| Running Speed: | Max.80m/min | Adjusting: | Worm Gearing |
| Pipe Diameter: | 21 - 63mm | Max.Thickness For Square Pipe: | 0.8-3.0mm |
| Welding Type: | High Frequency Welding | Keywords: | High Frequency Welded Pipe Mill |
| Highlight: | Round hf welded tube mill,Carbon hf welded tube mill,Round high frequency welded tube mill |
||

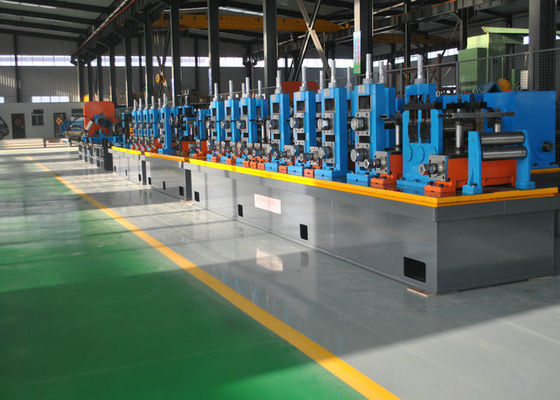

High - Frequency Tube Rolling Mill , Carbon Steel Pipe Milling Machine
Product Description
1. Product Description
ERW pipe mill is used for producing welded carbon erw pipe, corresponding square erw pipe and profiled pipe.
The composition of equipment is from uncoiler to cutting saw, rolling speed can be adjusted correspondingly
within suitable range of tube diameter and wall thickness.
2. Advantage:
1 .Our pipe production line are manufactured from best materials. Steady, durable and long life.
2. Automatic control, easy to operate.
3. Easy to replace the moulds, save working hour and increase efficiency.
4. Higher safety for operation.
3. Operating Principle
Our uses roll forming theory to coil long steel strip of a certain specification into erw pipe barrel without any intermittence and form longitudinal seam joint under the force of squeeze roller. And it use induction welding to heat longitudinal seam
That is feed steel strip of a certain specification into the machine and coil it into erw pipe blank though forming roller.Then under skin effect and proximity effect of high frequency electric current, the current will be concentrated on the bond surface of the ERW pipe fringe, welding it into pipe bank quickly. After cooling, sizing and broad straightening,the needed erw pipe will be produced by the pipe mill production line.
4. Main Application
Our ERW pipe mill are mainly use on manufacturing electric heating pipes,refrigerator pipes,automobile frame erw pipes,fitness equipment erw pipes,furniture erw pipes, pipes of cooler,API erw pipes, pressure transmission erw pipes,architectural erw pipes, structural erw pipes and so on
Basic componets & Work flow:
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→
Computer cutting saw→Run-out table
Scope of Supply:
1) Machine installation & test running for Buyer.
2) Sufficiently train operation method to Buyer's operators.
3) Reference document (in English): foundation drawing (including the arrangement of water, electricity and air etc.), circuit diagram and operation instruction, etc
4) Additional Rollers for welded pipe will be ordered and designed according to type and specification provided by Buyer.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
