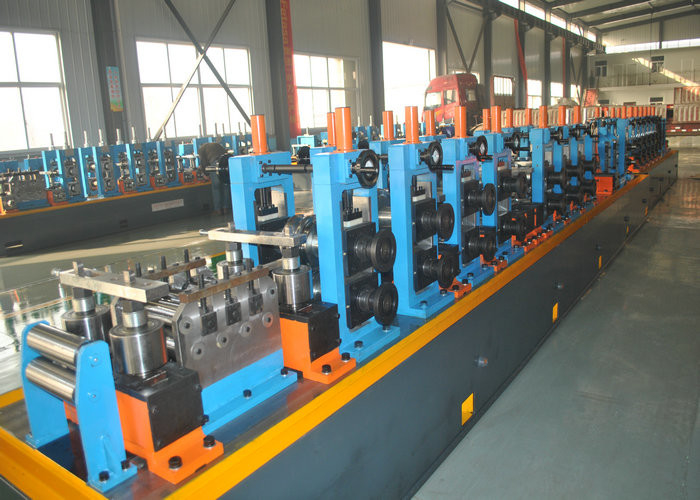

Precision Tube Mill for Stainless Steel Pipes 25-60mm Diameter

Name: Precision Tube Mill for Stainless Steel Pipes 25-60mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG50

Product Name:

Precision Tube Mill Straight Seam Stainless Steel Tube Mill / Pipe Mill Machine With High Precision

Cutting Saw:

Cold Saw & Friction Saw Cutting

Thickness:

1.0-3.0mm

Pipe Diameter:

25-60mm

Pipe Shape:

Round,square,rectangular

Mill Speed:

30-100m/min

Adjustment Type:

By Turbine Worm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Straight Seam Stainless Steel Tube Mill / Pipe Mill Machine With High Precision

Product Specifications

Cutting Saw	Cold Saw & Friction Saw Cutting
Thickness	1.0-3.0mm
Pipe diameter	25-60mm
Pipe shape	Round, square, rectangular
Mill speed	30-100m/min
Adjustment type	By turbine worm

Product Description

This high-precision tube mill is designed for manufacturing round pipes of Φ12mm-Φ38mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip. The process involves forming unclosed tubular blanks, welding them into tubes using solid state high-frequency welding, followed by cooling, sizing/shaping, and on-stream cutting.

Key Precision Advantages

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Steel pipe diameter and roundness error: ≤0.08mm

Production Process

material(steel coil) -> uncoiler -> shear and welder -> horizontal(or cage) accumulator -> forming mill -> HF solid welder -> sizing mill -> roughly straightening(turkey head) -> cut off machine -> run out table

Technical Parameters

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

We can customize the machine according to specific customer requirements.

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

General Features

Our KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. They can also produce profiled pipes including square, rectangular, and oval pipes.

After absorbing advanced pipe making technology, our innovative production line offers both economical and practical solutions.

Compatible Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

Our Services

Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sale services including workshop design and production output planning
After-sale services including installation, training, and technical support
Option for extended engineer support (months to 1 year) for production optimization
Complete project design services for stainless steel/carbon steel pipe production
Responsibility for loading and shipping arrangements
