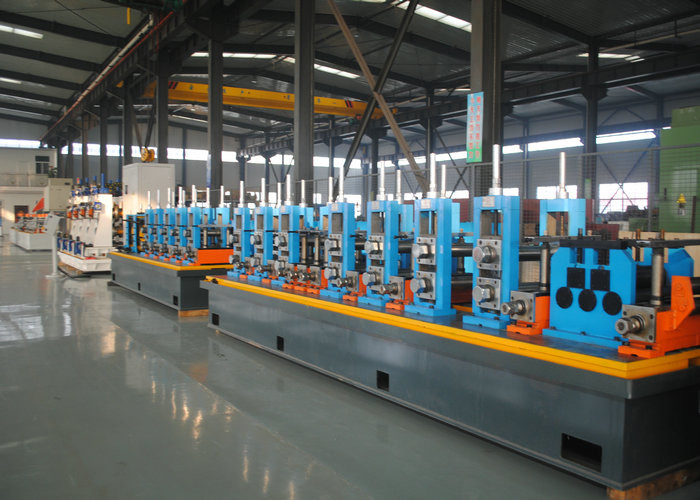

HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine

Name: HG76 Stainless Steel Tube Mill High Frequency Welded Pipe Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill HG76 Stainless Steel Tube Mill Welded Pipe Making Machine CE Approved

Max.Thickness For Square Pipe:

0.8-3.0mm

Worm Gearing:

Max.80m/min

Certification:

CE ISO

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Other Pipe:

Square Pipe And Rectangular Pipe

Coil Outer Diameter:

Max. Φ1600mm

Production:

Round Pipe

Custom:

Size Diameter

Welder:

200KW

Wall Thickness:

1.0~4.0 Mm

Pipe End Facing:

Beveling/Chamfering

Type Of Welding:

High Frequency Welding

Square Tubes:

Min 10 X10 ~Max 45 X 45 Mm

Production Capacity:

100-1000 Tons Per Month

Equipment Specification:

High Frequency And Precision

Main Drive Motor:

DC 55kW×2

Key Word:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

HG76 stainless steel tube mills

Welded Pipe stainless steel tube mills

HG76 stainless steel pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

2.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

HG76 Stainless Steel Tube Mills Welded Pipe Making Machine

CE Approved Industrial Pipe Manufacturing Equipment

Key Specifications

Attribute	Value
Max. Thickness for Square Pipe	0.8-3.0mm
Production Speed	Max. 80m/min
Certification	CE ISO
Pipe Diameter Range	21 - 63mm
Compatible Materials	Carbon steel, stainless steel, low alloy steel
Production Capability	Round pipe, square pipe, rectangular pipe
Coil Outer Diameter	Max. Φ1600mm
Wall Thickness Range	1.0~4.0 mm
Welder Power	200KW
Production Capacity	100-1000 tons per month

Technical Specifications

Model: HG50 enlarge to 76

Size: 42*5*1.6m

Weight: 26T

Power: 400kw

Voltage: 380v (customizable)

Production Capabilities

Square pipe thickness: 0.5mm~2.0mm
Round pipe thickness: 0.5mm~2.5mm
Square tube size: 15*15~60*60mm
Production speed: 0M/min~120M/min
Length: 4m~8m

Steel Strip Specifications

Thickness: 0.5~2.5mm
Width: 50~240mm
Coil Outer Diameter: Φ800mm~Φ1500mm
Coil Inner Diameter: Φ450mm~Φ550mm
Maximum Load Weight: ≤3000kgs

Equipment Overview

This high-frequency welded pipe mill is specially designed for producing Φ20-Φ80mm pipes with wall thickness of 1-4.0mm, including corresponding square pipes (17*17-62*62mm, 1.2-3.0mm). The complete production line includes components from uncoiler to fixed length cutting saw, with adjustable rolling speed based on pipe diameter and wall thickness requirements.

Material Compatibility
