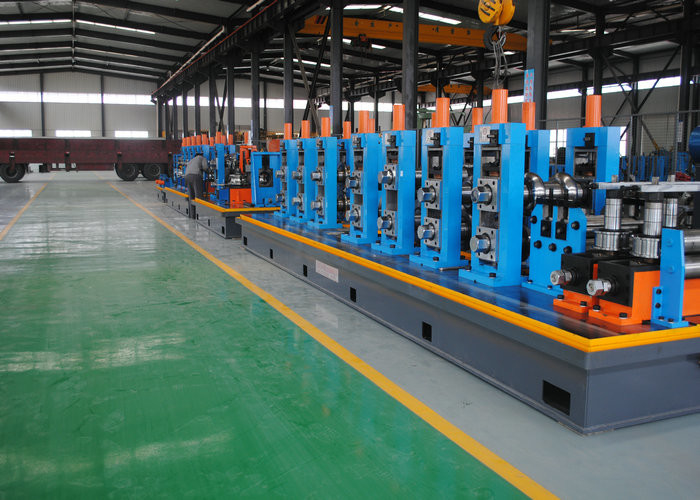

High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V
High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V
  • High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V
  • High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V

High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
High Frequency Welded Pipe Mill Industrial Pipe Production Line 380V/440V With 4-8m Length
Max.Thickness For Square Pipe:
0.8-3.0mm
Worm Gearing:
Max.80m/min
Certification:
CE ISO
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

Industrial Pipe hf tube mill

,

440V hf tube mill

,

Industrial Pipe high frequency tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Industrial Pipe HF Tube Mill Production Line 380V/440V With 4-8m Length
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill Industrial Pipe Production Line 380V/440V With 4-8m Length
Max.Thickness for Square Pipe 0.8-3.0mm
Worm Gearing Max.80m/min
Certification CE ISO
Pipe Diameter 21 - 63mm
Material Carbon steel, stainless steel, low alloy steel
Product Description

This high-frequency welded tube mill production line is designed for manufacturing precision stainless steel pipes used in various applications including furniture, hand railings, household appliances, curtain rails, and more. The versatile machine can produce round pipes as well as square, rectangular, oval, and other irregular pipe shapes.

Key Features
  • Produces Φ20-Φ80mm high-frequency straight seam welded pipes
  • Handles square pipes (17*17-62*62mm, 1.2-3.0mm)
  • Complete production line from uncoiler to fixed length cutting saw
  • Adjustable rolling speed based on pipe diameter and wall thickness
Technical Specifications
A. Applicable Material
  • Raw material: Low-carbon steel
  • Thickness: 1.0-3.5mm
  • Width: 60-240mm
  • Coil I.D.: Φ450-Φ550mm
  • Coil O.D.: Φ800-Φ1200mm
  • Maximum weight: 2500kg
B. Dimension Range
  • Pipe O.D.: Φ20-Φ80mm
  • Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
  • Length: 4-8m
  • Milling speed: 60-70m/min
  • High-frequency equipment power: 250 KW (Solid state)
  • Voltage: 380V/440V, 50HZ
C. Main Components
  • Uncoiler: 1 set
  • Shearing and butt-welder: 1 set
  • Accumulator: 1 set
  • Forming, Welding & sizing unit: 1 set
  • Computer-controlled tracking cutting saw: 1 set
  • Run-out table: 1 set
  • Solid-state high-frequency welder: 1 set
Product Images
High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V 0 High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V 1 High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V 2 High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V 3 High Frequency Welded Pipe Mill 21-63mm Diameter 380V/440V 4
