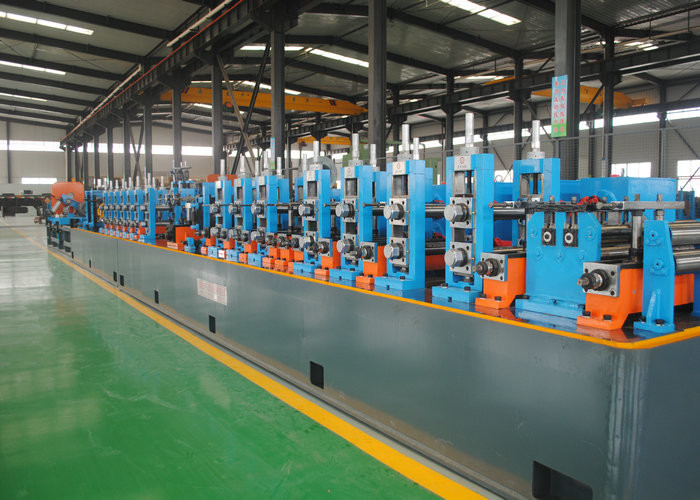

High Frequency Welded Pipe Mill for Carbon Steel Stainless Steel

Name: High Frequency Welded Pipe Mill for Carbon Steel Stainless Steel
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill SS ERW Tube Mill Line / Pipe Making Machine Low Carbon Steel Materials

Max.Thickness For Square Pipe:

0.8-3.0mm

Worm Gearing:

Max.80m/min

Certification:

CE ISO

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

erw hf welded tube mill

SS hf welded tube mill

Low Carbon Steel hf tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 set per year

Product Description

SS ERW HF Welded Tube Mill Line / Pipe Making Machine for Low Carbon Steel Materials

Product Specifications

Attribute	Value
Max. Thickness for Square Pipe	0.8-3.0mm
Worm Gearing Speed	Max. 80m/min
Certification	CE ISO
Pipe Diameter Range	21 - 63mm
Material Compatibility	Carbon steel, stainless steel, low alloy steel

HG140 Adjustable Size High Frequency Welded Pipe ERW Pipe Mill

Our HG114 High-Frequency Welded Pipe Production Line is engineered to manufacture welded pipes with diameters ranging from 60-140mm and wall thicknesses of 1.5-5.0mm, including square, rectangular, and deformed pipes of corresponding sizes. This production line incorporates innovative design elements from domestic and international equipment, offering advanced technology, user-friendly operation, and maintenance convenience.

Key Features

Material Compatibility: Processes hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel with δs≤345Mpa, δb≤610Mpa)
Processing Range: Round pipes Φ60-Φ140mm | Square/Rectangular pipes 50x50-110x110mm
Thickness Range: Round pipes 1.5-5.0mm | Square/Rectangular pipes 1.5-4.5mm
Power Requirements: 800KVA installed capacity
Water Consumption: 50m³/h
Welding Technology: 300KW or 400KW solid-state high-frequency welder
Workspace Requirements: 50m (L) × 12m (W) × 6m (H)
Production Speed: 40-60m/min forming speed

Technical Specifications

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (KW)	HF Welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Our Services

Installation & Training: We provide engineers for machine installation and worker training
Warranty: One-year quality guarantee with lifetime repair support
Comprehensive Support: Pre-sales services including workshop design and production output planning
Technical Assistance: Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Project Design: Complete project design services for stainless steel and carbon steel pipe production
Logistics: Full responsibility for loading and shipping arrangements

For professional advice and customized solutions, please contact our team.
