Product Details:
Payment & Shipping Terms:
|
| Pipe Thickness: | 4.0-10.0mm | Max.Thickness For Square Pipe: | 0.8-3.0mm |
|---|---|---|---|
| Worm Gearing: | Max.80m/min | Certification: | CE ISO |
| Pipe Diameter: | 21 - 63mm | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
| High Light: | erw tube mill,stainless tube mills |
||

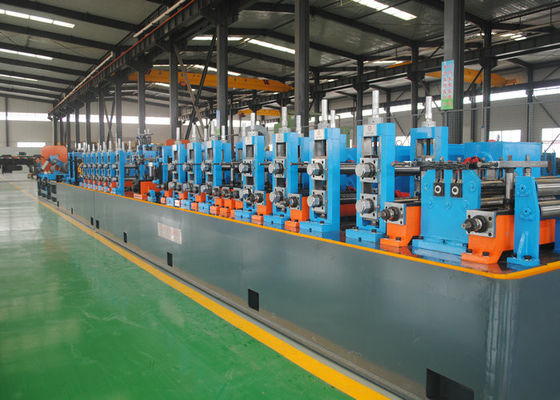

HG140 Adjustable Size High frequency Welded Pipe ERW Pipe Mill
HG114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.
1. Adapt materials:
Hot rolled or cold rolled steel strip
Material : Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
2. Processing steel pipe size range:
(1) Processing range:Round pipe Φ60-Φ140mm.
Square&Rectangular pipe 50x50—110x110
(2) Thickness of Round pipe :1.5-5.0mm
Thickness of Square&Rectangular pipe :1.5-4.5mm
3. Installed capacity: 800KVA
4. Water consumption: 50m3/h
5. Solid-state high-frequency Welder:300KW or 400KW
6. Workshop Request:length, width and height 50m X 12m X 6m
7. Forming speed:40-60m/min
More Specification
| Model | Diameter(mm) | Thickness(mm) | Speed(m/min) | Main power(kw) | HF welder(KW) | Area(m2) |
| HG32 | 10-32 | 0.4-1.5 | 30-100 | 250 | 100 | 12x100 |
| HG50 | 12-50 | 0.6-2.5 | 30-90 | 300 | 150 | 12x100 |
| HG76 | 12-76 | 1-3 | 30-90 | 320 | 200 | 12x100 |
| HG89 | 32-89 | 1-4 | 30-80 | 350 | 300 | 12x100 |
| HG114 | 45-114 | 1.5-5.0 | 30-60 | 400 | 300 | 12x100 |
| HG165 | 60-165 | 3-7 | 30-50 | 600 | 400 | 12x100 |
| HG219 | 114-219 | 4-8 | 20-40 | 800 | 500 | 15x150 |
| HG273 | 114-273 | 4-10 | 15-30 | 1000 | 600 | 18x160 |
| HG325 | 165-325 | 4-10 | 10-30 | 1200 | 600 | 12x100 |
| HG426 | 165-426 | 4-12.7 | 8-25 | 1400 | 800 | 12x100 |
| HG508 | 219-508 | 4-16 | 8-20 | 2000 | 1000 | 12x100 |
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5) We supply the pre-sell service Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6) We will be responsible for the loading and shipping
