High Frequency Welded Pipe Mill
>

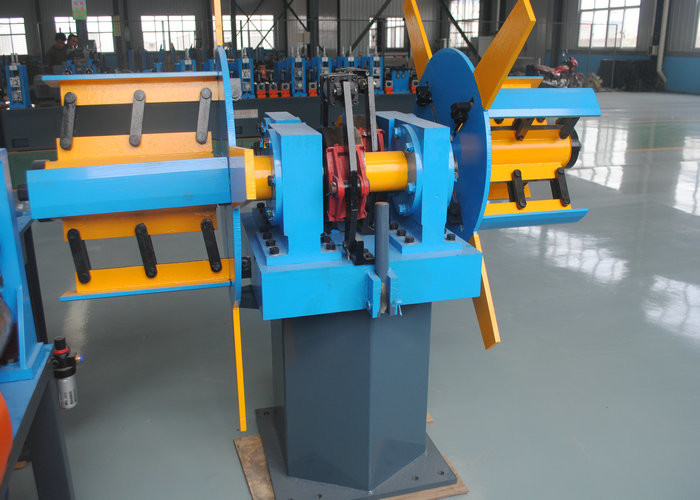

High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel
High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel
  • High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel
  • High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel

High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
High Frequency Welded Pipe Mill Speed ERW Pipe Mill Stainless Steel Materials With 21 - 63mm Diameter
Worm Gearing:
Max.80m/min
Certification:
CE ISO
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

high frequency stainless steel pipe mill

,

21mm Diameter stainless steel pipe mill

,

63mm Diameter stainless steel tube mills

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 set per year
Product Description
ERW 21 - 63mm Diameter Stainless Steel Pipe Mill
Product Overview
High Frequency welded pipe mill Speed ERW Pipe Mill for Stainless Steel Materials with 21-63mm Diameter
Key Specifications
  • Maximum Speed: 80m/min
  • Certifications: CE, ISO
  • Pipe Diameter Range: 21-63mm
  • Compatible Materials: Carbon steel, stainless steel, low alloy steel
Product Description
HG114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60-140mm in diameter and 1.5-5.0mm in wall thickness, as well as square and rectangular pipes of corresponding sizes.
Technical Specifications
  • Material Compatibility: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel)
  • Processing Range:
    • Round pipe: Φ60-Φ140mm (Thickness: 1.5-5.0mm)
    • Square/Rectangular pipe: 50x50-110x110mm (Thickness: 1.5-4.5mm)
  • Installed Capacity: 800KVA
  • Water Consumption: 50m³/h
  • Solid-state High-frequency Welder: 300KW or 400KW
  • Workshop Requirements: 50m (L) × 12m (W) × 6m (H)
  • Forming Speed: 40-60m/min
Model Specifications
Model Diameter (mm) Thickness (mm) Speed (m/min) Main Power (kw) HF Welder (KW) Area (m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
Process Flow
High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel 0
Our Workshop
High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel 1 High Frequency Welded Pipe Mill 21-63mm Diameter ERW Stainless Steel 2
Our Services
  • On-site installation and operator training by our engineers
  • One year quality guarantee with life-time repair service
  • Comprehensive pre-sale and after-sale services including:
    • Workshop design and production output planning
    • Installation, training, and technical support
  • Option for extended engineer support (several months to 1 year) to optimize production
  • Complete project design for stainless steel/carbon steel pipe production
  • Responsible for loading and shipping arrangements
For professional advice and inquiries, please contact us.
