Precision Tube Mill Fully Automated ERW Pipe Making Machinery
  • Precision Tube Mill Fully Automated ERW Pipe Making Machinery
  • Precision Tube Mill Fully Automated ERW Pipe Making Machinery
  • Precision Tube Mill Fully Automated ERW Pipe Making Machinery
  • Precision Tube Mill Fully Automated ERW Pipe Making Machinery
  • Precision Tube Mill Fully Automated ERW Pipe Making Machinery

Precision Tube Mill Fully Automated ERW Pipe Making Machinery

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG60
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG60
Product Name:
Precision Tube Mill Fully Automation ERW Tube Mill High Speed Ms Pipe Making Machinery
Adjustment Type:
By Turbine Worm
Cutting Saw:
Cold Saw & Friction Saw Cutting
Pipe Shape:
Round,square,rectangular
Welding Type:
High Frequency Welding
Keywords:
Precision Tube Mill
Highlight:

High Light

Highlight:

ss tube mill machine

,

industrial tube mills

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets/Year
Product Description
Precision Tube Mill Fully Automation ERW Tube Mill High Speed MS Pipe Making Machinery
Product Overview

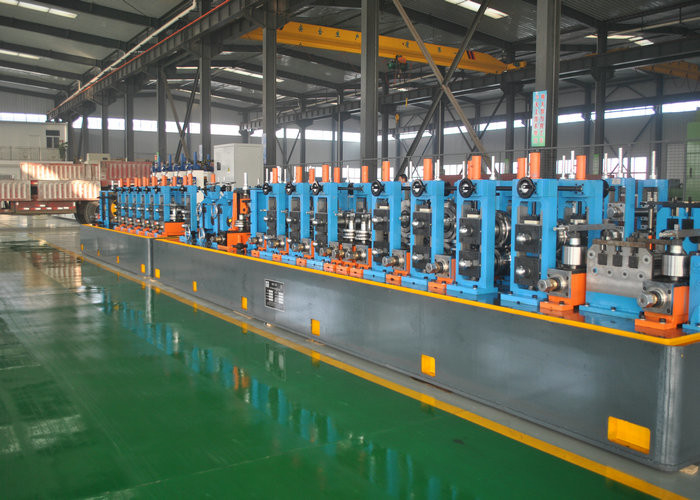

The HG273 mill is designed for manufacturing round pipes of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip. The process involves forming unclosed tubular blanks, welding with high-frequency technology, cooling, sizing, and cutting to measured lengths.

Precision Tube Mill Fully Automated ERW Pipe Making Machinery 0
Key Features
  • Precision engineering: Level roller jumps ≤0.01mm, frame clearance ≤0.02mm
  • High accuracy: Pipe diameter and roundness error ≤0.08mm
  • Fully automated operation for consistent quality
  • High-frequency welding technology
  • Multiple pipe shapes: Round, square, rectangular
  • Adjustment type: By turbine worm
  • Cutting options: Cold Saw & Friction Saw Cutting
Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal accumulator → Forming mill → HF solid welder → Sizing mill → Rough straightening (turkey head) → Cut off machine → Run out table

Precision Tube Mill Fully Automated ERW Pipe Making Machinery 1
Technical Specifications
Parameter Value
Stands of forming mill 7
Stands of sizing mill 5
Shaft material 40Cr
Round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
Square pipe size 15×15-60×60mm
Square pipe thickness 1.5-2.0mm

We can customize the machine according to specific customer requirements.

Available Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Compatible Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

Precision Tube Mill Fully Automated ERW Pipe Making Machinery 2
Our Services
  • Installation & Training: We provide engineers for installation and worker training
  • Warranty: One year quality guarantee with free repair parts (excluding human error)
  • Pre-sale Service: Workshop design and production output planning
  • After-sale Support: Installation, training, and technical assistance
  • Extended Support: Option for engineers to work onsite for several months to optimize production
  • Project Design: Complete project planning for stainless steel/carbon steel pipe production
