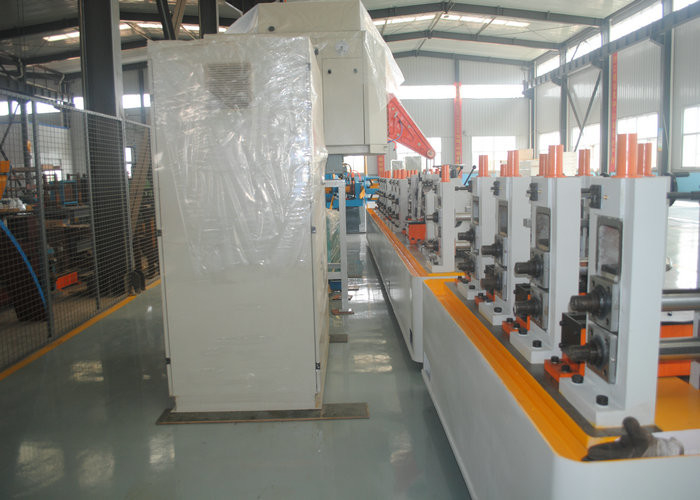

Precision Tube Mill for Stainless Steel Round Square Rectangular Pipes

This high precision full automatic tube mill begins with coil loading at the uncoiler, followed by butt-welding the coil ends and delivering to the accumulator. The strip is then continuously pulled at fixed speed, formed into opened-pipe at the forming machine, and welded by High Frequency welder. Subsequent processes include deburring, cooling, shaping, and sizing into round, rectangular, or square pipes. The sized pipe is straightened after the Turkey-head device and cut to fixed length by flying saw before final inspection.

This production line can manufacture round, rectangular, and square pipes from cold/hot-rolled coil materials, suitable for metallurgy, construction, transportation, machinery, and automobile industries. The "W" forming type ensures optimal force distribution and perfect forming shape at each stand.

• Precision measurements: between level roller jumps 0.01mm, between frame and slide clearance ≤0.02mm
• Frame vertical degree ≤0.05mm, each frame parallel degree ≤0.1mm
• Steel pipe diameter and roundness error ≤0.08mm

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Roughly straightening (turkey head) → Cut off machine → Run out table

Note: We can design the machine according to customer requirements.

Compatible Materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

• Installation & Training: We provide engineers for machine installation and worker training
• Warranty: One year quality guarantee with life guarantee repair. Free repair parts during warranty period (excluding human error)
• Comprehensive Support: Pre-sell services including workshop and production output design; After-sell services including installation, training, and skilled engineer support
• Extended Support: Option for engineer assistance for several months to one year to improve output, reduce waste, and decrease costs
• Project Design: Complete project design services for stainless steel/carbon steel pipe production
