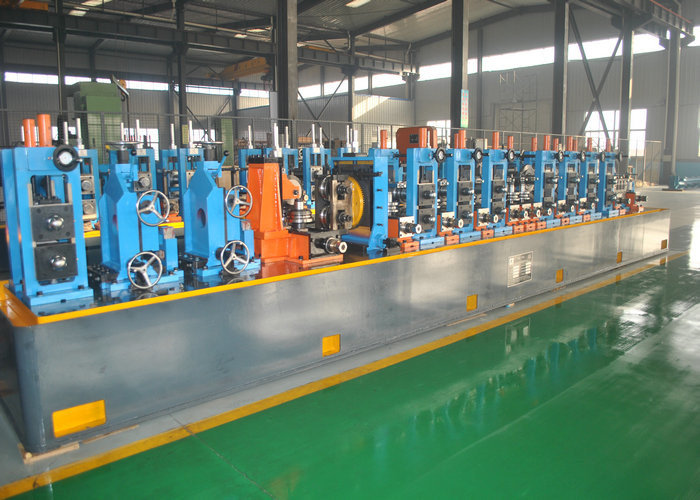

Precision Tube Mill ERW Pipe Making Machine with PLC Control

Name: Precision Tube Mill ERW Pipe Making Machine with PLC Control
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG50

Product Name:

Precision Tube Mill High Performance ERW Pipe Making Machine Automatic PLC Control

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Pipe Shape:

Round,square,rectangular

Welding Type:

High Frequency Welding

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

Precision Tube Mill High Performance ERW Pipe Making Machine with Automatic PLC Control

Product Specifications

Attribute	Value
Adjustment Type	By turbine worm
Cutting Saw	Cold Saw & Friction Saw Cutting
Pipe Shape	Round, square, rectangular
Welding Type	High Frequency Welding

Available Models & Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Compatible Materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

HG50 High Precision Tube Mill Specifications

Material: Carbon steel, alloy steel
Mechanical Properties: σB≤520mpa; σS≤340mpa
Coil ID: φ470-φ510mm
Coil OD: φ900-φ1800mm
Coil Weight: ≤3 tons
Width: 40-200mm
Installed Capacity: approx. 350KW
Compressed Air Capacity: 2m³/min 4-7Kg/cm²
Water Consumption: 20tons/hr
High Frequency Water Consumption: 30tons/hr
Workshop Requirements: Height (5M min from crane to floor) × Width (8M) × Length (50M min). Two sets of 5 tons overhead crane recommended.

Our Comprehensive Services

On-site engineer dispatch for machine installation and operator training
Warranty: One year quality guarantee with lifetime repair support
Free repair parts during warranty period (excluding human error cases)
Cost-only spare parts after warranty period
Pre-sale services including workshop design and production output planning
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year) for production optimization
Complete project design services for stainless steel/carbon steel pipe production
