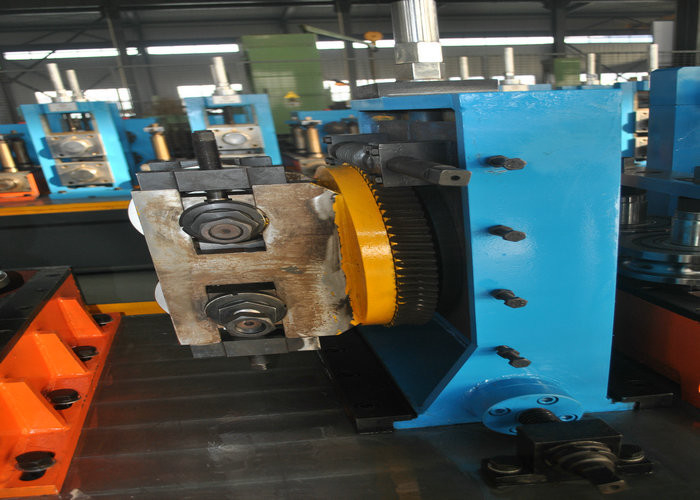

High Precision Tube Mill Rolls for 4.0-8.0mm Wall Thickness

Name: High Precision Tube Mill Rolls for 4.0-8.0mm Wall Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

High Precision Tube Mill Rolls , Welded Tube Mill 4.0-8.0mm Wall Thickness

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Pipe Shape:

Round,square,rectangular

Welding Type:

High Frequency Welding

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

High Precision Tube Mill Rolls, Welded Tube Mill 4.0-8.0mm Wall Thickness

Product Specifications

Adjustment type: By turbine worm
Cutting Saw: Cold Saw & Friction Saw Cutting
Pipe shape: Round, square, rectangular
Welding Type: High Frequency Welding

Packaging & Delivery

Packaging: Sea worthy simply packaged or according to customer requirements
Port: According to customer requirements
Lead Time: 90 days after receiving deposit

WG219-A (Large Diameter) High Precision ERW Steel Tube Mill

Specification	Value
Pipe O.D (round)	89mm-219mm (Φ3.5~Φ8.6inch)
Square pipe	70X70mm-170X170mm
Wall thickness	4.0-8.0mm
Length	4-12m
Speed	0-40m/min
Main motor	200Kw x 2
H.F welder	600Kw

Craft Flow

Uncoiling → Shearing and butt welding → Material accumulating → Flattening → Forming system
High frequency induction welding machine → Inside and outside burr removing frame
Water cooling system → Sizing system → Leveling system → Speed testing → Turkish frame
Saw cutting → Running out table

Main Components

Component	Description
1	Uncoiler
2	Accumulator
3	Shearing and butt welding machine
4	Forming machine
5	Roller System of Forming
6	Seam Guide
7	High Frequency Induction Welding Machine
8	Roller System for Moving
9	Burr Removing Frame (Inside and outside)
10	Water cooling system
11	Sizing machine
12	Roller System of Leveling
13	Speed Testing Wheel
14	Turkish Frame
15	Auto flying saw controlled by Computer
16	Run-out table
17	Electric control Equipment
18	High frequency welding machine

Basic Requirements for the Buyer

Parameter	Specification
Steel strips material	Low-carbon steel, low alloy steel: σs≤345mpa, σb≤610mpa
I.D	Φ700~Φ800mm
O.D	Φ1000~1600mm
Width	280~700mm
Thickness	4.0-8.0mm
Maximum weight	≤10000KGS
