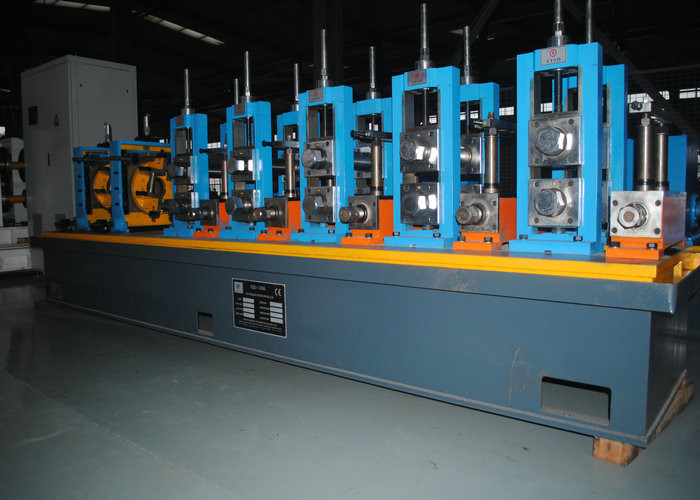

High Frequency Welded Pipe Mill for 21-63mm Stainless Steel Pipes

Name: High Frequency Welded Pipe Mill for 21-63mm Stainless Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill Straight Seam Steel Pipe Production Line , Stainless Steel Pipe Mill

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Straight Seam stainless steel pipe mill

stainless steel pipe mill Production Line

Straight Seam stainless steel tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 set per year

Product Description

Straight Seam Stainless Steel Pipe Mill Production Line

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill Straight Seam Steel Pipe Production Line, Stainless Steel Pipe Mill
Certification	CE ISO
Worm gearing	Max.80m/min
Pipe Diameter	21 - 63mm
Material	Carbon steel, stainless steel, low alloy steel

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m2)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Product Overview

ERW pipe mill is used for producing welded carbon ERW pipe, corresponding square ERW pipe and profiled pipe. The composition of equipment is from uncoiler to cutting saw, with rolling speed adjustable within suitable range of tube diameter and wall thickness.

Key Advantages

Manufactured from premium materials for steady performance, durability and long service life
Automatic control system for easy operation
Quick mold replacement capability to save working hours and increase efficiency
Enhanced safety features for operator protection

Operating Principle

Our pipe mill uses roll forming theory to continuously coil long steel strip into ERW pipe barrel, forming longitudinal seam joint under squeeze roller force. Induction welding heats the longitudinal seam.

The process feeds steel strip into the machine where forming rollers coil it into pipe blank. High frequency electric current concentrates on the bond surface through skin effect and proximity effect, quickly welding the fringe into pipe bank. After cooling, sizing and straightening, the production line outputs finished ERW pipes.

Main Applications

Our ERW pipe mills manufacture pipes for various industries including:

Electric heating pipes and refrigerator pipes
Automotive frame pipes and fitness equipment pipes
Furniture pipes and cooler pipes
API pipes and pressure transmission pipes
Architectural and structural pipes
