High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm
  • High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm
  • High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm
  • High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm

High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
High Frequency Welded Pipe Mill High Performance Carbon Steel ERW Pipe Mill , Steel Pipe Manufacturing Machine
Certification:
CE ISO
Worm Gearing:
Max.80m/min
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

High Performance erw pipe mill

,

Carbon Steel erw pipe mill

,

High Performance erw tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 set per year
Product Description
High Performance Carbon Steel ERW Pipe Mill, Steel Pipe Manufacturing Machine
Product Specifications
Attribute Value
Product name High Frequency Welded Pipe Mill High Performance Carbon Steel ERW Pipe Mill, Steel Pipe Manufacturing Machine
Certification CE ISO
Worm gearing Max. 80m/min
Pipe Diameter 21 - 63mm
Material Carbon steel, stainless steel, low alloy steel
Keywords High Frequency Welded Pipe Mill
Process Flow
Coil storage
Uncoiling
Straighter and pinching & leveling
Shearing & butt-welding
Horizontal Spiral loop
Entry guide
Forming
HF welding
Air cooling
Water cooling
Sizing
Cutting off
Rollers after cutting
Transitional tables and stands for round pipes
Rollers transporting
Straightener
End-facing and beveller
Hydrotester
UT Tester
Weighing and length-measuring
Collection
Painting
Collection
High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm 0
The F.F.X forming method for ERW line is an advanced, mature forming system we've designed and manufactured for over 10 years. Developed through extensive experience and incorporating foreign correlation techniques, this system achieves nearly identical roller usage efficiency and product quality as the latest technical modes. This roll pass technology features stable forming, high quality output, and convenient specification changes, particularly suitable for large thickness and high-quality applications. It significantly improves product quality in plate shape, roundness, surface quality, and flattening tests.

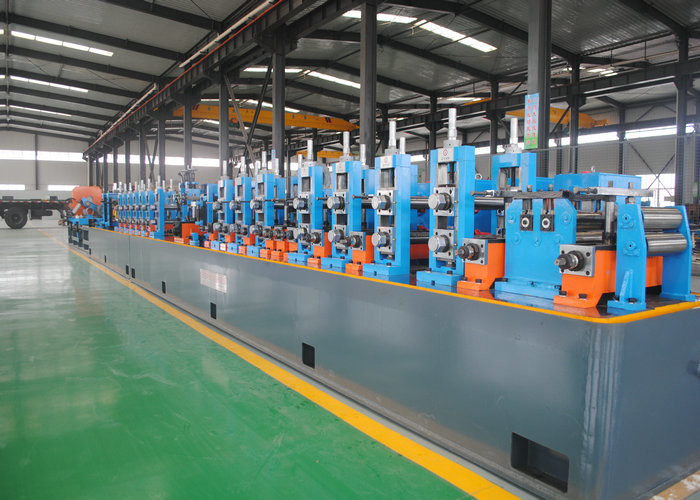

Products Show
High Frequency Welded Pipe Mill for Carbon Steel ERW Pipes 21-63mm 1
Technical Specifications
Model Diameter (mm) Thickness (mm) Speed (m/min) Main power (kw) HF welder (KW) Area (m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
