High Speed Galvanized ERW Pipe Mill Machine 21-63mm Diameter

Name: High Speed Galvanized ERW Pipe Mill Machine 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

High Frequency Welded Pipe Mill High Speed Galvanized Erw Pipe Mill / Tube Making Machine CE ISO9001 Approved

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter Range:

Φ20-Φ76mm

Warranty:

One Year

Dimension:

25m*2m*2m

Inner Diameter:

550-610mm

Adjusting:

Worm Gearing

Raw Material:

Square Tube Making Machine

Drive Motor:

DC 75KW X 2

Motor Voltage:

30KW

Pipe Shape:

Square Rectangular，LTZU

Pipe Length:

6-12m

Key Words:

High Frequency Welded Pipe Tube Mill

Highlight:

High Light

Highlight:

erw high frequency welded pipe mill

Galvanized high frequency welded pipe mill

High Speed hf welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

35 set per year

Product Description

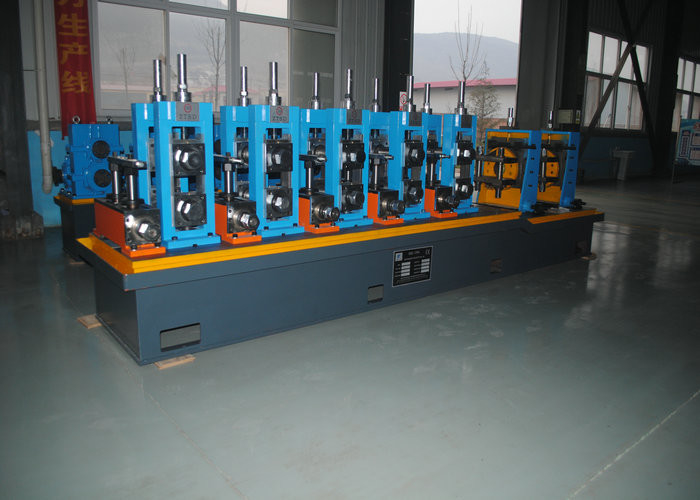

High Speed Galvanized ERW High Frequency Welded Pipe Mill Tube Making Machine

Product Specifications

Product Name	High frequency welded pipe mill high Speed Galvanized ERW Pipe Mill / Tube Making Machine CE ISO9001 Approved
Certification	CE ISO
Worm Gearing	Max. 80m/min
Pipe Diameter	21 - 63mm
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range	Φ20-Φ76mm
Warranty	One year
Dimension	25m2m2m
Inner Diameter	550-610mm
Drive Motor	DC 75KW x 2
Motor Voltage	30KW
Pipe Shape	Square rectangular, LTZU
Pipe Length	6-12m

Product Description

The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.

Production Process

Uncoil and flatten the slitted steel coils into steel strips
Form strips into round pipe shape using forming machine rollers
Weld the tube using high frequency solid state welder
Form to expected shape/size in sizing machine
Cut to length and bundle finished tubes

Applications

This pipe is used especially for:

Petroleum and Natural gas pipelines
City gas distribution networks
Chemical industry applications
Electricity infrastructure
Steel truss construction
Water and Gas pipeline systems

Process Flow

Feed → Uncoil → Straighten → Shear and buttweld → Loop storage → Form → HF welder → IF anneal → Cool → Size → Cut → Output → End bevel → Hydraulic test → Collect

Machine Components

Uncoiler
Hoop cage or Horizontal Accumulator
Forming Machine with Roller System
Seam Guide
High Frequency Induction Welding Machine
Burr Removing Frame (Inside and outside)
Water Cooling System
Sizing Machine
Auto Flying Saw Controlled by Computer
Electric Control Equipment

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
