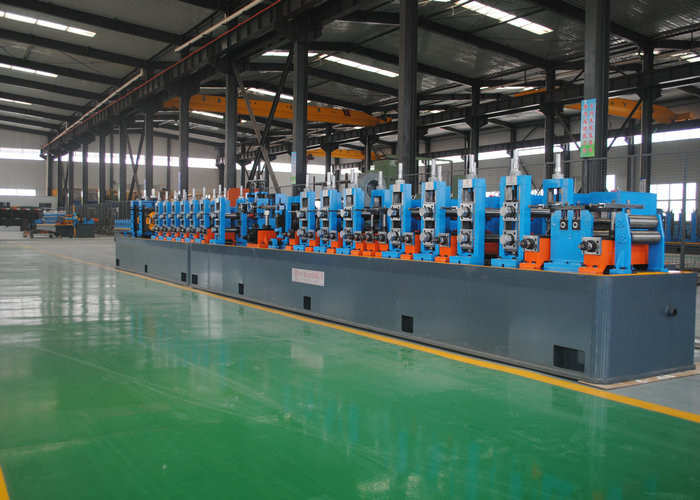

High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter

Name: High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

High Frequency Welded Pipe Mill ERW Tube Mill , Welded Pipe Mill 0.8-3.0mm Max Thickness

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

0.8mm high frequency welded tube mill

3mm high frequency welded tube mill

hf welded tube mill ERW

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

35 set per year

Product Description

ERW 0.8-3.0mm Max Thickness High Frequency Welded Tube Mill

Attribute	Value
Product name	High Frequency welded pipe mill ERW Tube Mill, Welded Pipe Mill 0.8-3.0mm Max Thickness
Certification	CE ISO
Worm gearing	Max.80m/min
Pipe Diameter	21 - 63mm
Material	Carbon steel, stainless steel, low alloy steel
Keywords	High Frequency Welded Pipe Mill

Product Description

The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.

Starts by uncoil and flatten the slitted steel coils into steel strips
The flattened steel strips are inserted into the forming machine where rollers shape them into round pipes
The rolled strips are welded using a high frequency solid state welder
The welded tubes are formed to expected shape or size in a sizing machine
Final tubes are cut to length and bundled

Function

This pipe mill is designed for producing pipes used in petroleum, natural gas, city gas distribution, pipe networks, chemical industry, electricity infrastructure, steel trusses, and water/gas pipelines. It's widely used for various pressure pipeline applications.

Process Flow

Feed → uncoil → straighten → shear and butt-weld → loop storage → form → HF welder → IF anneal → cool → size → cut → output → end bevel → hydraulic test → collect.

Machine Components

Uncoiler
Hoop cage or Horizontal Accumulator
Main Machine Components:
- Forming Machine
- Roller System of Forming
- Seam Guide
- High Frequency Induction Welding Machine
- Roller System for Moving
- Burr Removing Frame (Inside and outside Burr)
- Water Cooling System
- Sizing Machine
- Roller System of Leveling
- Speed Testing Wheel
- Turkish Frame
- Auto Flying Saw Controlled by Computer
- Run out table
- Electric Control Equipment
- High Frequency Welding Machine

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
