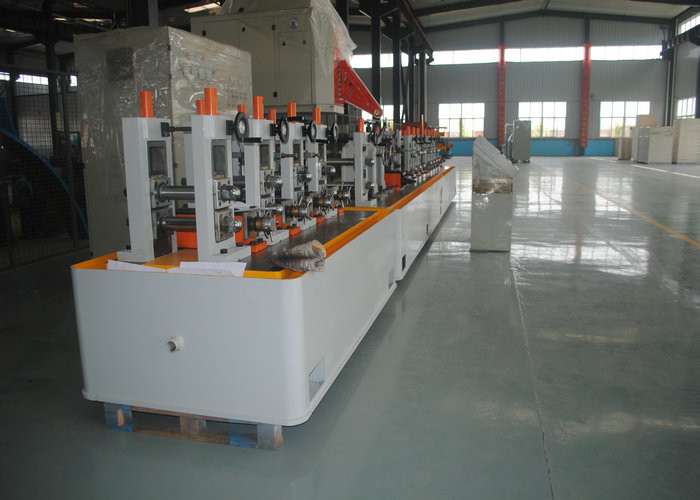

Precision Tube Mill for High Pressure Pipes 25-76mm

Name: Precision Tube Mill for High Pressure Pipes 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill High Pressure Pipe Milling Machine Stainless Welded Tube Mill BV CE Listed

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

70 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

35 Sets

Product Description

Precision Tube Mill High Pressure Pipe Milling Machine

Product Specifications

Attribute	Value
Material	HRC, CRC, Galvanised Steel
Pipe Diameter	25-76mm
Welding Type	High Frequency Welding
Pipe Shape	Round, Square, Rectangular
Adjustment Type	By Turbine Worm

Product Description

High Precision Handrail Stainless Steel Pipe/Tube Mill designed for manufacturing uniform, parallel products with excellent precision.

Key Features

Shaft & Rollers: 45# steel adjustable treatment, polished with 0.05mm chrome plate
Power: 101kw motor with chain drive transmission
Forming Speed: 20m/min
Cutting System: Advanced hydraulic drive for automatic cutting without distortion
Blade Material: Cr12 steel with quenched treatment (60-62 hardness)
Precision Standards: Frame verticality ≤0.05mm, parallel degree ≤0.1mm
Pipe Quality: Diameter and roundness error ≤0.08mm

Production Process

1. Material (steel coil)
2. Uncoiler
3. Shear and welder
4. Horizontal/cage accumulator
5. Forming mill
6. HF solid welder
7. Sizing mill
8. Rough straightening (turkey head)
9. Cut off machine
10. Run out table

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40

General Information

KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. Capable of producing profiled pipes including square, rectangular, and oval pipes.

Compatible Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible materials.
