Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness
Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness
  • Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness
  • Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness
  • Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness

Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG76
Product Name:
Custom ERW Pipe Mill For Carbon / GI Steel Tube 4.0-10.0mm Pipe Thickness
Product Speed:
Max 50m/min
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Worm Gearing:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Keywords:
Custom ERW Pipe Mill
Highlight:

High Light

Highlight:

erw tube mill

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Custom ERW Pipe Mill for Carbon/GI Steel Tube Production
Key Specifications
  • Product Speed: Max 50m/min
  • Pipe Diameter Range: 21 - 63mm
  • Material Compatibility: Carbon steel, stainless steel, low alloy steel
  • Cutting System: Friction Saw Cutting
  • Worm Gearing Speed: Max. 80m/min
  • Pipe Thickness Range: 4.0-10.0mm
Product Overview
High-frequency ERW pipe mill for carbon steel water supply pipe production, featuring advanced aperture technology, PLC automatic control system, and digital speed regulating unit for reliable operation and easy maintenance.
Production Line Description
This specialized equipment produces carbon high frequency welded pipes with precision engineering. The complete system includes forming, welding, sizing, and straightening devices, from decoiler to fixed-length cutting saw, with adjustable rolling speed based on pipe dimensions.
Production Process Flow
  1. Raw material (strip steel roll)
  2. Material feeding
  3. End cutting and butt welding (hand welding)
  4. Strip storage cage
  5. Material feeding and forming
  6. High frequency welding
  7. Removing outer burr
  8. Cooling water jacket
  9. Diameter fixing and straightening
  10. Cut off with flying saw
  11. Material unloading (manual stowing and binding)
  12. Inspection
  13. Storage
Technical Parameters
Description WB12 WB25 WB32 WB50
Diameter of welded tubes Φ7-25mm Φ8-32mm Φ13-50mm Φ20-60mm
Wall thickness of welded tubes 0.3-1.0mm 0.4-1.5mm 0.6-1.8mm 0.8-2.7mm
Speed of tube welding 90M/min 90M/min 90M/min 70M/min
Power of major motor 22KW 37KW 55KW 75KW
Power of high frequency welder 60KW 60KW 100KW 100KW
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

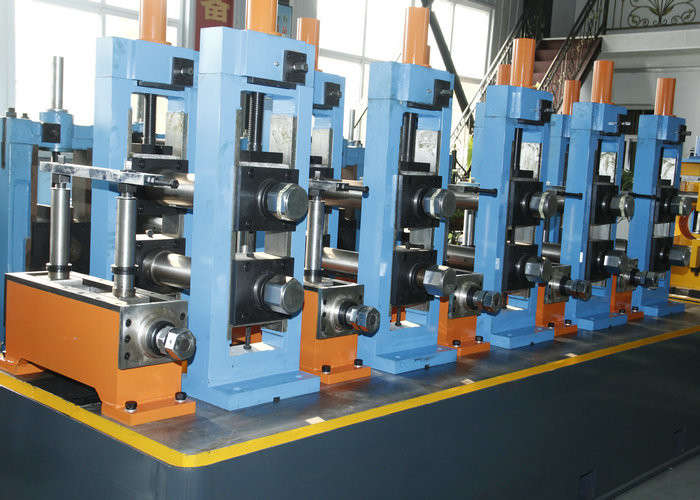

Custom ERW Pipe Mill for Carbon Steel Tubes 4-10mm Thickness 0
Our Comprehensive Services
  • Installation & Training: On-site engineer support for installation and operator training
  • Warranty Coverage: One-year quality guarantee with lifetime repair support
  • Pre-Sale Services: Workshop design and production output planning
  • After-Sale Support: Installation, training, and skilled engineer assistance
  • Extended Engineering Support: Option for engineer placement (several months to 1 year) to optimize output and reduce waste
  • Project Design: Complete project planning for stainless steel/carbon steel pipe production
  • Logistics: Full responsibility for loading and shipping
