Product Details:
Payment & Shipping Terms:
|
| Product Name: | Custom ERW Pipe Mill For Carbon / GI Steel Tube 4.0-10.0mm Pipe Thickness | Product Speed: | Max 50m/min |
|---|---|---|---|
| Pipe Diameter: | 21 - 63mm | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
| Cutting Saw: | Friction Saw Cutting | Worm Gearing: | Max.80m/min |
| Pipe Thickness: | 4.0-10.0mm | Keywords: | Custom ERW Pipe Mill |
| Highlight: | erw tube mill,slitting line machine |
||

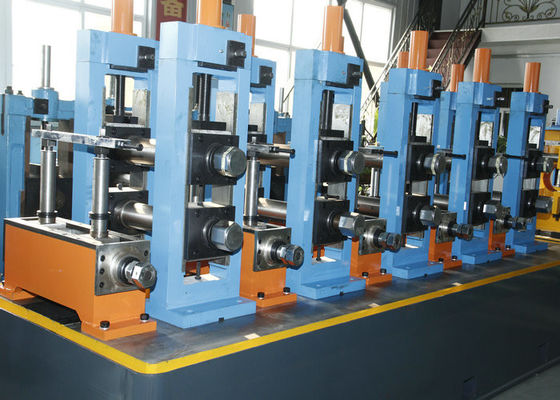

ERW high frequency welding carbon steel water supply pipe production mill
Introduction
This equipment is specially used for producing Carbon High Frequency Welded Pipe Mill. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from decoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
Process of the Production Line
Raw material (strip steel roll) – Material feeding – End cutting and butt welding (hand welding) – Strip storage cage – Material feeding and forming – High frequency welding – Removing outer burr – Cooling water jacket – Fix the diameter and straightening – Cut off with flying saw – Material unloading (Manually stow and bind up) – Inspection – Storehouse
Technical parameter
High frequency welded pipe mil
| Description | WB12 tube mill line |
WB25 tube mill line |
WB32 tube mill line |
WB50 tube mill line |
| Diameter of welded tubes | Φ7-25mm | Φ8-32mm | Φ13-50mm | Φ20-60mm |
| Wall thickness of welded tubes | 0.3-1.0mm | 0.4-1.5mm | 0.6-1.8mm | 0.8-2.7mm |
| Speed of tube welding | 90M/min | 90M/min | 90M/min | 70M/min |
| Power of major motor | 22KW | 37KW | 55KW | 75KW |
| Power of high frequency welder | 60KW | 60KW | 100KW |
100KW |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
