Square Steel Pipe Making Machine for Carbon Steel 10-32mm

Name: Square Steel Pipe Making Machine for Carbon Steel 10-32mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI，CHINA
Brand Name:	TENGTIAN
Certification:	CE/ISO9001/BV
Model Number:	HG32

Detail Information

Place of Origin:

HEBEI，CHINA

Brand Name:

TENGTIAN

Certification:

CE/ISO9001/BV

Model Number:

HG32

Product Name:

China Suppliers Square Steel Pipe Making Machine,Steel Pipe Slotting Machine Manufacturer

Pipe Material:

Carbon Steel

Voltage:

380V/220V

Weight:

About 10 Tons

Pipe Shape:

Round,square

Pipe Diameter:

10-32mm

Thickness:

0.4-1.5mm

Speed:

30-120m/min

Power(w):

300w

Keywords:

Square Steel Pipe Making Machine

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

150 units one year

Product Description

Square Steel Pipe Making Machine

Product Specifications

Attribute	Value
Pipe Material	Carbon Steel
Voltage	380V/220V
Weight	Approximately 10 tons
Pipe Shape	Round, Square
Pipe Diameter	10-32mm
Thickness	0.4-1.5mm
Speed	30-120m/min
Power	300W

Machine Overview

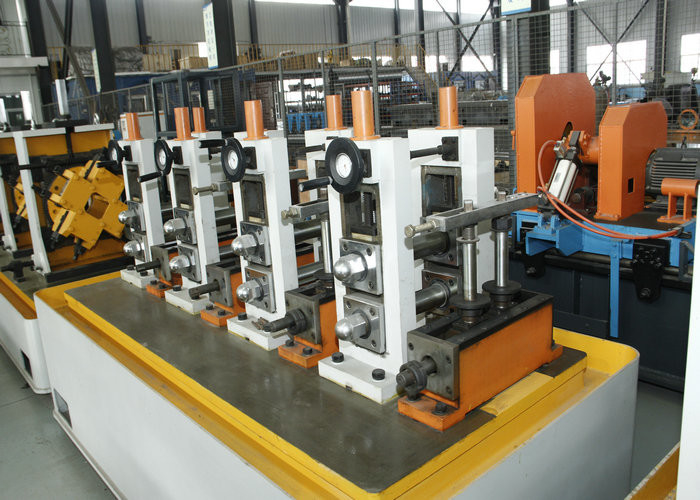

The H32 steel square pipe making machine manufactures round pipes (Φ10mm-Φ32mm) with thickness of 0.4mm-1.5mm from cold-rolled and hot-rolled coil strips. The process involves forming unclosed tubular blanks, welding them into tubes using high-frequency welding, then cooling, sizing/shaping, and cutting to measured lengths. The machine produces round, square, or rectangular pipes.

Available models include H32, H60, and H127 steel square pipe making machines.

Key Features

Supports multiple materials including carbon steel and GI
Produces a wide range of pipe sizes through interchangeable molds
Capable of manufacturing both square and round pipes with mold changes
Produced pipes suitable for various applications including water tubes and wire pipes

Production Process

Steel Tape → Double-head uncoiler → Strip-head Cutter and welder → Spiral accumulator → Forming section (Flattening unit + Main driving unit + Forming unit + Guide unit + High frequency induction welding unit + squeeze roller) → Removing External and internal burr → Cooling unit → Sizing unit and straightener → Flying saw under computer-control → Run-out table
