ERW Pipe Mill
>
ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes
ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes
  • ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes
  • ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes

ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG76
Product Name:
ERW Steel Pipe Manufacturing Machine , Water Supply Tube Making Machine
Roller:
Cr12/SKD11
Pipe Thicknes:
1.0-3.0mm
Cutting Saw:
Friction Saw Cutting
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Pipe Diameter:
21 - 63mm
Product Speed:
Max 100m/min
Keywords:
ERW Steel Pipe Manufacturing Machine
Highlight:

High Light

Highlight:

stainless tube mills

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
ERW Steel Pipe Manufacturing Machine, Water Supply Tube Making Machine
Product Specifications
Attribute Value
Product Name ERW Steel Pipe Manufacturing Machine, Water Supply Tube Making Machine
Roller Material Cr12/SKD11
Pipe Thickness 1.0-3.0mm
Cutting Saw Friction Saw Cutting
Material Compatibility Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range 21 - 63mm
Maximum Production Speed 100m/min
Product Overview

This advanced ERW steel pipe manufacturing machine incorporates aperture technology, PLC automatic control system, and digital speed regulating unit to ensure reliable operation and easy maintenance.

Key Features
  • Specifically designed for producing Carbon High Frequency Welded Pipe Mill
  • Constructed with refined materials for high precision operation
  • Equipped with fixed length cutting saw for accurate pipe sizing
  • Complete system includes forming, welding, sizing and straightening devices
  • Rolling speed automatically adjusts based on pipe diameter and wall thickness
Production Line Process
  1. Raw material (strip steel roll) loading
  2. Material feeding and end cutting
  3. Butt welding (hand welding)
  4. Strip storage cage
  5. Material feeding and forming
  6. High frequency welding
  7. Outer burr removal
  8. Cooling water jacket
  9. Diameter fixing and straightening
  10. Cut off with flying saw
  11. Material unloading (manual stowing and binding)
  12. Quality inspection
  13. Final storage
Technical Parameters
Description WB12 Tube Mill Line WB25 Tube Mill Line WB32 Tube Mill Line WB50 Tube Mill Line
Diameter Range Φ7-25mm Φ8-32mm Φ13-50mm Φ20-60mm
Wall Thickness 0.3-1.0mm 0.4-1.5mm 0.6-1.8mm 0.8-2.7mm
Welding Speed 90M/min 90M/min 90M/min 70M/min
Main Motor Power 22KW 37KW 55KW 75KW
High Frequency Welder Power 60KW 60KW 100KW 100KW

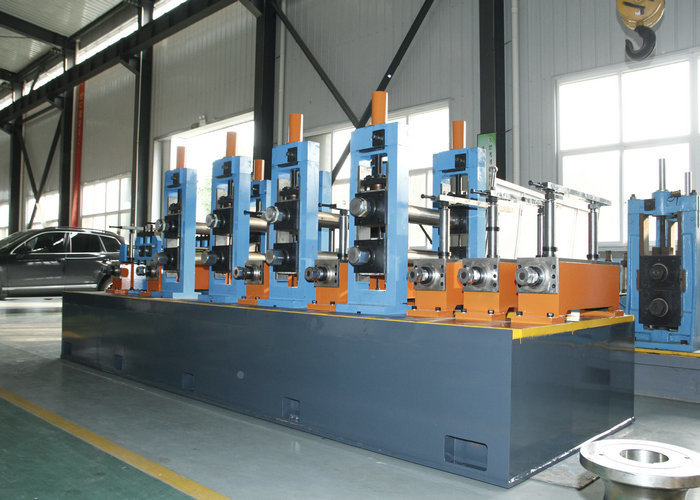

ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes 0 ERW Steel Pipe Manufacturing Machine for 21-63mm Pipes 1
