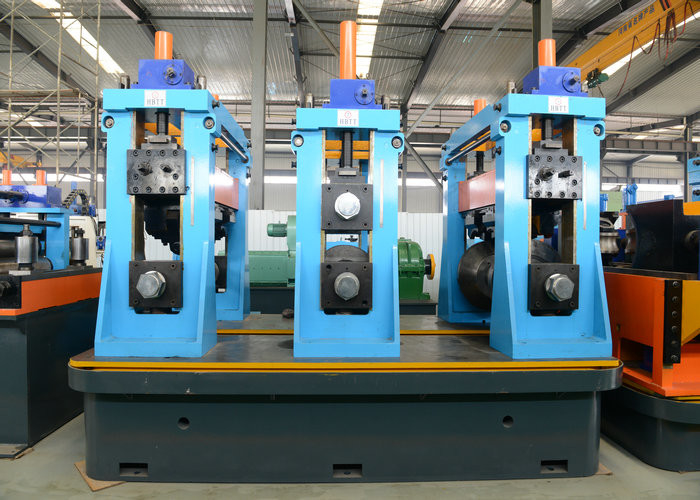

High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter
High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter
  • High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter
  • High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter
  • High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter

High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG219
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG219
Product Name:
High Precision ERW Pipe Mill Pipe Making Machine With Good Working Condition
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Pipe Diameter:
21 - 63mm
Product Speed:
Max 50m/min
Max.Thickness For Square Pipe:
0.8-3.0mm
Certification:
CE ISO
Worm Gearing:
Max.80m/min
Keywords:
ERW Pipe Mill Pipe
Highlight:

High Light

Highlight:

erw tube mill

,

stainless tube mills

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
three months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
High Precision ERW Pipe Mill Pipe Making Machine
Product Specifications
Material Compatibility Carbon Steel, Stainless Steel, Low Alloy Steel
Pipe Diameter Range 21 - 63mm
Maximum Production Speed 50m/min
Max. Thickness for Square Pipe 0.8-3.0mm
Certifications CE, ISO
Worm Gearing Speed Max. 80m/min
Technical Specifications by Model
Model Diameter (mm) Thickness (mm) Speed (m/min) Main Power (kw) HF Welder (KW) Area (m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter 0 High Precision ERW Pipe Mill Machine for Carbon Steel 21-63mm Diameter 1
Product Applications & Services
What's the application of the HF straight seam welding steel tube forming machine?
The HF (ERW) welded pipe forming machine is used to produce building materials pipe, which is widely used for building material, drain and energy supply pipe, building and decoration profiles, extruded profiles, building profiles, and cold bending profiles.
How about the welded pipe size for diameter and wall thickness?
The carbon steel pipe diameter can be customized from 25-606mm with wall thickness 0.5-25mm for different kinds of applications.
What's the raw material (strip) width apply in welded pipe forming line?
We can customize the machine as per your requirements. The suitable steel strip width can be from 100mm to 1000mm, and we can also design as per your drawing.
How about the after-sales service, including installation, commissioning and training?
We will supply all the operation manuals and video clips with the machine, and we provide free training at our plant. We can also send technicians to your site for installation and training, with the relevant costs to be borne by your company.
