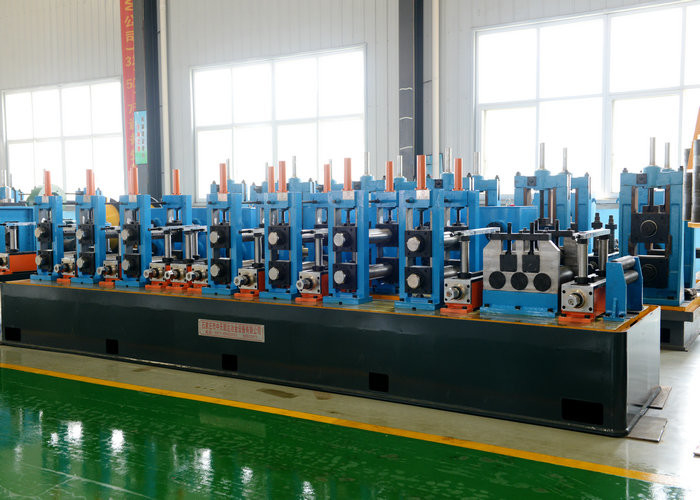

High Speed Spiral Welded Pipe Mill 21-63mm Diameter 50m/min

Name: High Speed Spiral Welded Pipe Mill 21-63mm Diameter 50m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

High Speed Spiral Welded Pipe Mill , Welded Pipe Making Machine 21 - 63mm Pipe Dia

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Keywords:

Welded Pipe Making Machine

Highlight:

High Light

Highlight:

erw tube mill

stainless tube mills

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Speed Spiral Welded Pipe Mill, Welded Pipe Making Machine 21 - 63mm Pipe Diameter

Product Specifications

Attribute	Value
Product Name	High Speed Spiral Welded Pipe Mill, Welded Pipe Making Machine 21 - 63mm Pipe Dia
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max.Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max.80m/min

Tube Mill Production Process

Our machinery can be customized according to different customer requirements. The standard production process includes:

Uncoiler
Shear & welding machine
Accumulator (Cage)
Forming machine
HF welding
Sizing machine
Flying saw (Cold saw)
Run out table
Hydro testing
End facing

For API standard, we can equip online testing equipment including Hydro testing equipment, End facing equipment, UT testing, and ECT testing.

Standard Machine Specifications

Below are our standard models for reference. Production range and main technical specifications can be adjusted according to your special requirements.

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Frequently Asked Questions

What's the application of the HF straight seam welding steel tube forming machine?

The HF (ERW) welded pipe forming machine is used to produce building materials pipe, which is widely used for building material, drain and energy supply pipe, building and decoration profiles, extruded profiles, building profiles, and cold bending profiles.

How about the welded pipe size for diameter and wall thickness?

The carbon steel pipe diameter can be customized from 25-606mm with wall thickness 0.5-25mm for different kinds of applications.

What's the raw material (strip) width apply in welded pipe forming line?

We can customize the machine as per your requirements. The suitable steel strip width can be from 100mm to 1000mm, and we can also design according to your specifications.

How about the after-sales service, including installation, commissioning and training?

We provide all operation manuals and video clips with the machine, and offer free training at our plant. We can also send technicians to your site for installation and training, with relevant expenses to be borne by your company.
