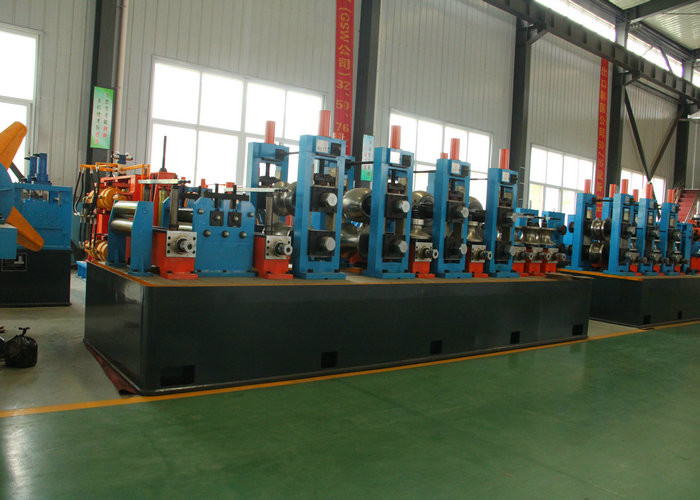

ERW Pipe Mill for Carbon Steel Stainless Steel 21-63mm Diameter

Name: ERW Pipe Mill for Carbon Steel Stainless Steel 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

High Performance Durable ERW Pipe Mill Max 80m/Min Worm Gearing Speed

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Keywords:

ERW Pipe Mill Max 80m/Min

Highlight:

High Light

Highlight:

erw tube mill

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 set per year

Product Description

High Performance Durable ERW Pipe Mill Max 80m/Min Worm Gearing Speed

Product Specifications

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max. Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max. 80m/min

Technical Parameters

Specification: Φ76×8.2
Pipe Diameter: Φ13~Φ76mm
Pipe Thickness: 3~8.2mm
Pipe Materials: Q195, Q215, Q235
Welding Speed: 10~30M/Min

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main power (kw)	HF welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

System Components

Hydraulic Decoiler: Loading Capacity: 4000kg | Coil Width: 150-410mm | Thickness: 2.0-5.0mm | Inner Diameter: ø500-ø700mm | Outer Diameter: ø1000-ø1500mm
Power Supply: Equipment Motor Power: 369kw | Power of HF station: 400kw
Front Shear and Welding Machine: Ensures continuous feeding of material
Cage Accumulator: Accumulation Capacity: 150-300mm | Feeding Speed: ≥ 100m/min | Manual adjusting | Motor Power: 30kw
Feeding & Flattening & Roll Forming Machine: 2 feeding rollers, 5 flattening rollers, forming machine with horizontal and vertical roller stations
Water Cooling System
HF Station: Power Supply: 380V/220V, 50HZ | Working Power: 300KW
Main Driving System: Main Motor: Z4 series, DC 132KW | Main Reducer: ZQ750-10.35
CNC Flying Saw: Cutting Thickness: 2.0-5.0mm | Cutting Length: 4-8m | Cutting O.D: ø48-ø130mm | Cutting Speed: 6-8 cuts/min | Cutting Tolerance: ≤ 6mm | Motor Power: 45 kw
