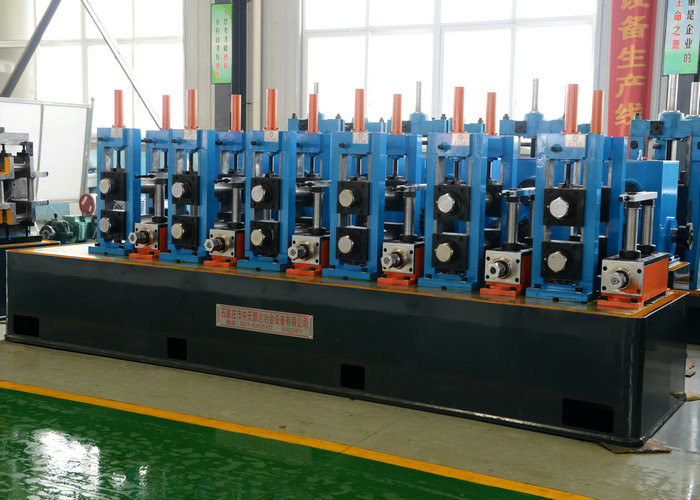

Steel Welded Pipe Making Machine 25-76mm Diameter 50m/min Speed

Name: Steel Welded Pipe Making Machine 25-76mm Diameter 50m/min Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

Steel Welded Pipe Making Machine Friction Saw Cutting 50m/Min Line Speed

Pipe Diameter:

25-76mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Keywords:

Steel Welded Pipe Making Machine

Highlight:

High Light

Highlight:

seamless pipe mill

welded pipe production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

Steel Welded Pipe Making Machine Friction Saw Cutting 50m/Min Line Speed

Key Specifications

Pipe Diameter	25-76mm
Maximum Line Speed	50m/min
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Cutting Method	Friction Saw Cutting
Pipe Thickness Range	4.0-10.0mm

Product Details

Type of Welding	High Frequency Welding
Application	Construction, Water and Gas Transportation
Forming Method	Forming by Rollers
Key Features	High Speed, High Precision
Tube Length	4m-12m
Wall Thickness Range	2.0mm-8.0mm

Equipment Components

Double-head Uncoiler: Max coil weight 5T, strip thickness 5.0mm, max width 400mm
Double-column Hydraulic Shearing Machine: Cuts strips up to 400mm wide and 5mm thick
Storing Device: Choice of spiral accumulator (ø5m) or cage accumulator
Main Mill Motor: 7 units gantry-type rollers for forming, 5 units for finishing
Solid-state High-frequency Welder: 400KW output power
Computer Controlled Flying Saw: ±3mm accuracy, max speed 70m/min
Discharging Table: Pneumatically reversed with 3Kw motor

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG114	45-114mm	1.5-5.0mm	30-60
HG219	114-219mm	4-8mm	20-40
HG508	219-508mm	4-16mm	8-20
