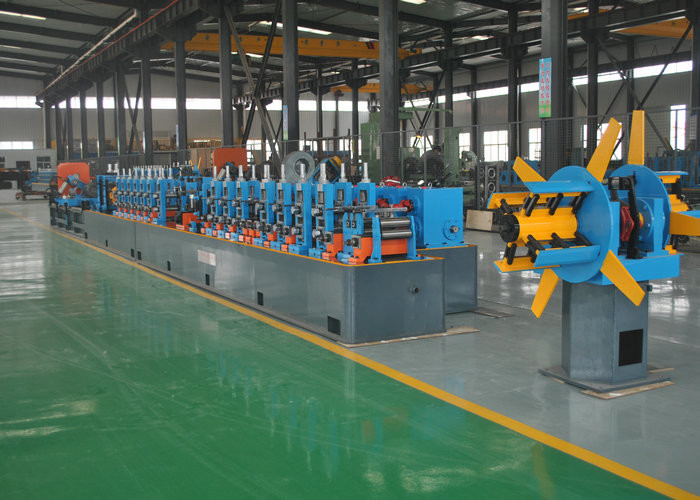

Tube Mill Machine for 25-76mm Pipes with Friction Saw Cutting

Name: Tube Mill Machine for 25-76mm Pipes with Friction Saw Cutting
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Pipe Diameter:

25-76mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

Industrial Tube Mill Machine, Pipe Making Equipment CE ISO Listed

Product Specifications

Pipe Diameter	25-76mm
Product Speed	Max 50m/min
Material	Carbon steel, stainless steel, low alloy steel
Cutting Saw	Friction Saw Cutting
Worm Gearing	Max. 80m/min
Pipe Thickness	4.0-10.0mm
Name	Tube Mill Machine

Product Description

General Information

This Tube Mill Machine is specially designed for producing Φ19-Φ76mm, δ0.7-3.0 mm high-frequency straight seam welded pipes, including corresponding square pipes and special-shaped pipes. The complete equipment setup ranges from decoiler to fixed length cutting saw. Rolling speed can be adjusted within the suitable range for specific pipe diameters and wall thicknesses.

Applicable Materials

Hot and cold-rolled steel strip and galvanized (As per GB700-88 or GB1591-88)
Material: Low-carbon steel, low alloy steel δs≤345Mpa, δb≤610Mpa

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Production Process

Raw material (steel coil) → decoiling → shearing and welding → accumulator → non-power leveling → forming milling → high frequency welding → de-burr frame → cooling unit → sizing unit → rough straightening → fixed length cutting → run out table

Required Accessories (For Reference)

Mechanical equipment site: 45m × 4.5m (length × width)
Electrical equipment site: 5m × 4m (length × width)
Machine unit foundation base (See supplier's base drawing)
Two sets of 5-ton overhead crane or 10 tons overhead crane
Power supply
Blades for tracking saw (quantity determined by customer)
Magnetic bar for welding pipe (size based on pipe dimensions)
One set of Φ3", 6m high-pressure pumps for pipe welding machine bed
Cooling water pool (25m³ with water pipe, pressure meter and valve)
Machine unit electric circuit
High-frequency room for machine unit
Air compressor (one set)
Lifting equipment for installation (maximum weight 8 tons)

Our Services

1) Installation & Training

We will send an engineer for installation and to train your workers in proper machine operation.

2) Warranty Team

One year quality guarantee with lifetime repair service. During warranty period, repair parts are provided free for non-human error failures. After warranty, only parts cost is charged.

3) Comprehensive Support

Pre-sale service includes workshop design and production output planning. After-sale service covers installation, training, and skilled engineering support.

4) Extended Engineering Support

We can provide engineers for several months to a year to help improve output, reduce waste, and decrease costs.

5) Project Design

Complete project design services for stainless steel or carbon steel pipe production.

6) Shipping

We handle all loading and shipping arrangements.
