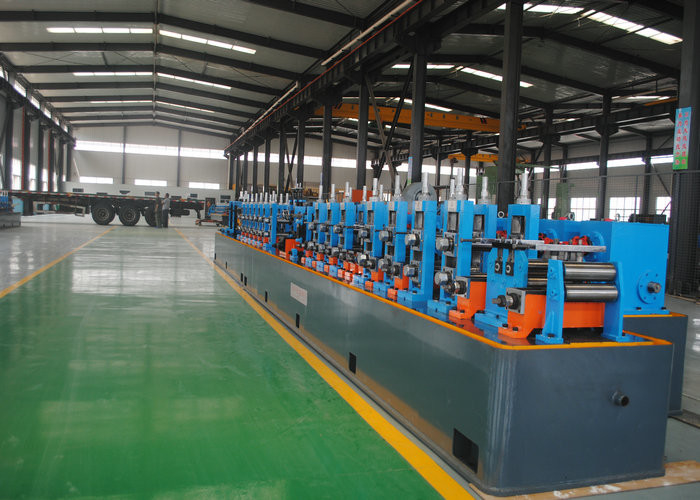

ERW Pipe Mill Machine 25-76mm Diameter Carbon Steel Tube Production
  • ERW Pipe Mill Machine 25-76mm Diameter Carbon Steel Tube Production
  • ERW Pipe Mill Machine 25-76mm Diameter Carbon Steel Tube Production
  • ERW Pipe Mill Machine 25-76mm Diameter Carbon Steel Tube Production

ERW Pipe Mill Machine 25-76mm Diameter Carbon Steel Tube Production

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG76
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG76
Product Name:
Automatic Pipe Tube Mill , ERW Pipe Milling Machine CE ISO Listed
Pipe Diameter:
25-76mm
Product Speed:
Max 50m/min
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Cutting Saw:
Friction Saw Cutting
Worm Gearing:
Max.80m/min
Pipe Thickness:
4.0-10.0mm
Keywords:
ERW Pipe Milling Machine
Highlight:

High Light

Highlight:

stainless tube mills

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
three months
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
50 set per year
Product Description
Automatic Pipe Tube Mill, ERW Pipe Milling Machine CE ISO Listed
Product Specifications
Pipe Diameter 25-76mm
Production Speed Max 50m/min
Material Compatibility Carbon steel, stainless steel, low alloy steel
Cutting Saw Friction Saw Cutting
Worm Gearing Max. 80m/min
Pipe Thickness 4.0-10.0mm
Product Description

This ERW Pipe making machine levels the fixed strip after slitting line, feeds it into the forming machine, bends it into pipe shape using rollers, melts the strip edges through high frequency current, and welds the pipe using squeeze rolls. Also known as an ERW pipe mill.

Technical Process
  • Loading coil
  • Uncoiler
  • Leveling
  • Shearing and butt welding
  • Accumulator
  • Forming
  • HF welding
  • Intermediate annealing
  • Air cooling
  • Water cooling
  • Sizing
  • Cutting
  • End facing and chamfering
  • Hydraulic testing
  • UT testing
  • Marking
  • Storing
Available Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Our Services
Quality Assurance

We guarantee quality for one year after successful installation and debugging. All expenses for replacing parts and components due to design or manufacturing issues will be covered by us (excluding human factors and vulnerable components).

Installation & Debugging
  • Factory will dispatch 1-2 technical engineers for installation and testing
  • Buyer responsibilities include:
    • Preparing the site and equipment foundation
    • Providing installation equipment (lift equipment, tools, etc.)
    • Supplying installation accessory materials (wires, drive pipes, water pipes)
    • Arranging labor force
  • Buyer must provide power supply, water supply, and gas supply to equipment interface
Buyer Preparation Notes
  • Machinery installation location (length × width)
  • Power supply: Main power to equipment control bench
  • Air feed: Air compressor (1.5 cubic meters/minutes)
  • Water supply: Water source to machine station
