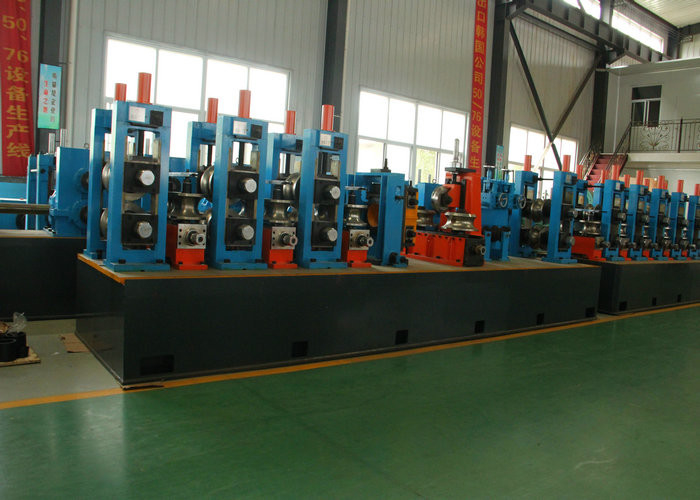

ERW Tube Mill 25-76mm Friction Saw Cutting 50m/min Carbon Steel

• Rotary motion with fast replacement steel coils and pneumatic brakes
• Coil weight: 500kg
• Roll feed axis inner diameter: 300mm-350mm
• Coil outer diameter: 1200mm
• Coil width: 110mm

• Host Z4-160-11, 22kw DC motor drive
• ZLY140 type reducer, ratio 4.2:1
• Imported continental DC device

• Type: Welded angles, channels
• Feed rate: ≥ 200m/min
• Material storage capacity: ≥ 400m

• Capacity: 22mm-80mm
• Material storage roller (group)
• Material: Gcr15
• Feeding rolling wheel: 115mm, 2
• Motor: 2.2kw 1 units

• Frequency of automatic control: 7.5kw
• Automatically tracking device
• Maximum cutting diameter: Φ26mm
• Cut length: 4m-7m
• Maximum cutting thickness: 1.5mm
• Type: Round metal blade Φ300mm × Φ30mm × 3.0mm
• Flying saw power: 3kw motor
• Pipe cutting length accuracy: within ± 0.33mm

• Type: GP60-0.6-H
• Input power supply: 3P, 380V, 50HZ
• Output power: 60kw
• Output control mode: Microcomputer regulator
• High-voltage rectifier: 15A
• High-voltage transformer: 3,380 V, 100KVA
• Shock tubes: FU-308S
• Tube filament transformer: 8V-AC
• Tube anode water pipes: Polyethylene intensifier tubes
• Capacitor: CCG81-1000P-20KV

We shall be responsible for quality problems resulting from design and manufacture for one year after successful installation and debugging. All expenses for replacing parts and components (excluding human factors and vulnerable components) shall be covered by us.

• Factory will send 1-2 technical engineers for installation and testing operation
• The site, equipment foundation, and cool constructions are the buyer's responsibility according to equipment material provided by supplier
• Installation equipment (lift equipment, tools etc.), installation accessory materials (wire, drive pipe, water pipe etc.), and labor force arranged by buyer
• Buyer is responsible for power supply, water supply and gas supply to the equipment interface connector

• Machinery device location (length × width)
• Power supply: Main power to equipment control bench, unit position
• Air feed: Air compressor (1.5 cubic meters/minutes)
• Water supply: Water source to machine station
