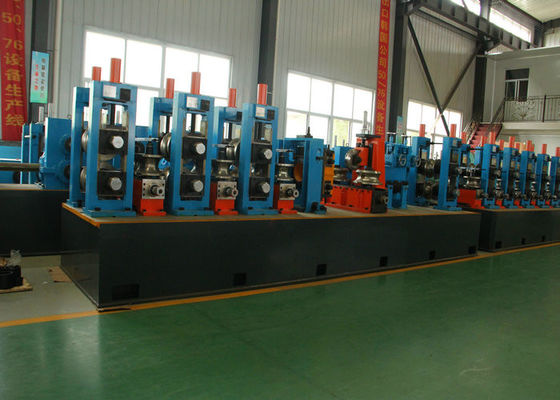

| Pipe Diameter: | 25-76mm | Product Speed: | Max 50m/min |
|---|---|---|---|
| Material: | Carbon Steel,stainless Steel,low Alloy Steel | Cutting Saw: | Friction Saw Cutting |
| Worm Gearing: | Max.80m/min | Pipe Thickness: | 4.0-10.0mm |
| High Light: | erw tube mill,slitting line machine |
||
Detailed technical:
double-headed uncoiler
1, Descriptions: rotary motion, fast replacement steel coils and pneumatic brakes
2, parameters and descriptions:
(1), coil weight: 500kg
(2), roll feed axis inner diameter: 300mm-350mm
(3), coil outer diameter: 1200mm
(4) Coil width: 110mm
Second, the main drive
1, the host Z4-160-11, 22kw DC motor drive
ZLY140 type reducer, ratio 4.2:1
3, drag the imported continental DC device.
Cage aggregate Box
1, Type: welded angles, channels
2, feed rate: ≥ 200m/min
3, material storage capacity: ≥ 400m
Fourth, the width adjustment
Capacity: 22mm-80mm
Material storage roller (group)
1, Material: Gcr15
Feeding rolling wheel: 115mm, 2
3, motor: 2.2kw 1 units
Computer Flying Saw
A frequency of the automatic control: 7.5kw
B, automatically tracking device
1, maximum cutting diameter: Φ26mm
2, cut length: 4m-7m
3, the maximum cutting thickness: 1.5mm
C, type: round metal blade Φ300mm × Φ30mm × 3.0mm
D, flying saw power: 3kw motor
E pipe cutting length, accuracy within ± 0.33mm
Unloading station with wheel transmission, pneumatic stirring up style
Eight high-frequency
1, Type: GP60-0.6-H
2, the input power supply: 3P, 380V, 50HZ
3, the output power: 60kw
4, the output control mode: microcomputer regulator
5, the high-voltage rectifier: 15A
6, the high-voltage transformer: 3,380 V, 100KVA
Shock tubes: FU-308S
8 tube filament transformer: 8V-AC
9, tube the anode water pipes: polyethylene intensifier tubes
10, the capacitor: CCG81-1000P-20KV
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Our Services
Quality Assurance
we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
Debugging
1) Factory will send 1-2technical engineers for installation and testing operation
2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.
3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector
4) Buyer Preparation Notes
(a)Machinery device takes the location (length* width)
(b)Power supply: Main power to equipment control bench, unit position
(c) Air feed: Air compressor (1.5 cubic meters/minutes
(d) Water supply: Water source to machine station
